DOWNLIGHT LUCE 6W 3K/4K

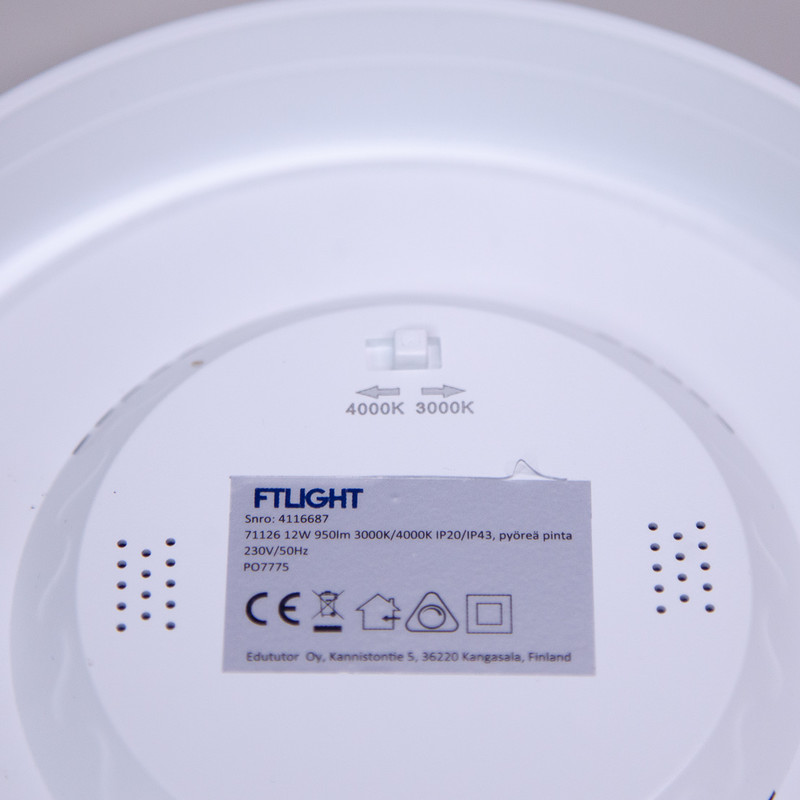

The dimmable LUCE general lighting fixture is suitable for every room in the home. The color temperature can be selected via a dip switch as 3000 K (warm white) or 4000 K (white).

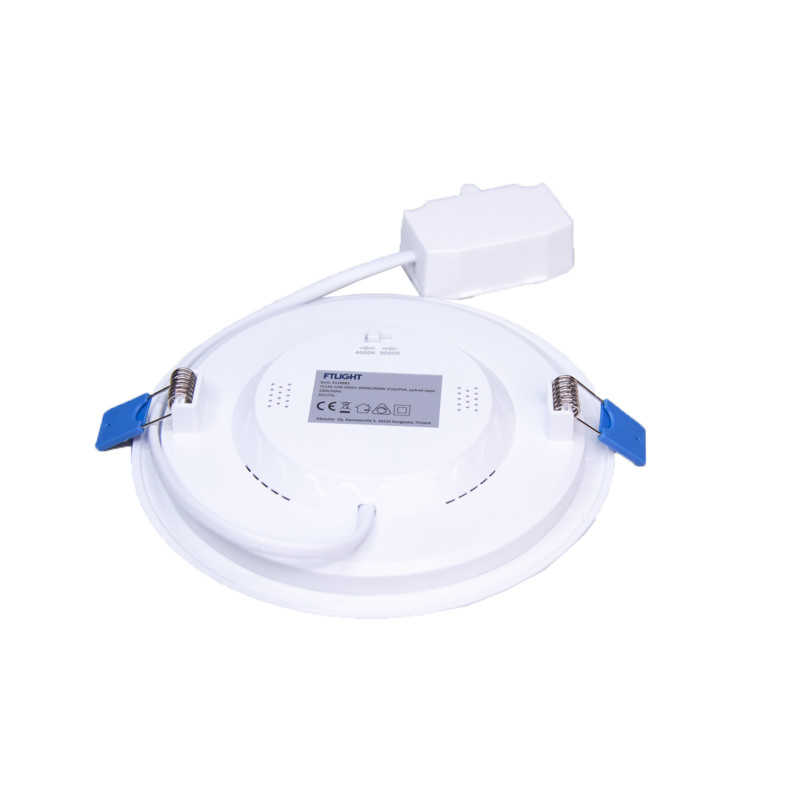

The fixture is available in round and square models, as well as surface-mounted or recessed versions.

The range also includes a black 6 W recessed round model. The frame color is otherwise white. The fixtures feature an integrated driver and an external switching enclosure.

Features

• height of only 29 mm – suitable as general lighting even in low ceiling spaces
• Triac dimmable
• separate switching enclosure
• recessed models IP44, surface-mounted models IP43
• for indoor use only
• power: 6 W / 12 W / 18 W / 20 W
• luminous flux: 75-80 lm/W
• color temperature: selectable 3000 K / 4000 K
• protection class: IP20 / IP44 / IP43
• CRI: >80
• beam angle: 120°
• driver: integrated driver, 2-pole switching enclosure with spring terminals
• voltage (input): 230 V / 50 Hz
• power factor (PF): >0.5
• frame and housing: plastic
• driver: built-in
• required air space below fixture: 15-20 mm
• service life: 35 000 h
• warranty: 3 years

Product Family

• 4116680 6 W 450 lm, round, recessed, mounting hole 105 mm
• 4144982 6 W 450 lm, round, recessed, mounting hole 105 mm, black
• 4116683 6 W 450 lm, square, recessed, mounting hole 105 mm x 105 mm
• 4116686 6 W 450 lm, round, surface-mounted
• 4116689 6 W 450 lm, square, surface-mounted
• 4116681 12 W 950 lm, round, recessed, mounting hole 155 mm
• 4116684 12 W 950 lm, square, recessed, mounting hole 155 mm x 155 mm
• 4116687 12 W 950 lm, round, surface-mounted
• 4116690 12 W 950 lm, square, surface-mounted
• 4116682 18 W 1450 lm, round, recessed, mounting hole 210 mm
• 4116685 18 W 1450 lm, square, recessed, mounting hole 210 mm x 210 mm
• 4116688 18 W 1450 lm, round, surface-mounted
• 4116691 18 W 1450 lm, square, surface-mounted
• 4144997 20 W 1850 lm, round, recessed, mounting hole 210 mm

This product description is an automated translation of the original Finnish description.
