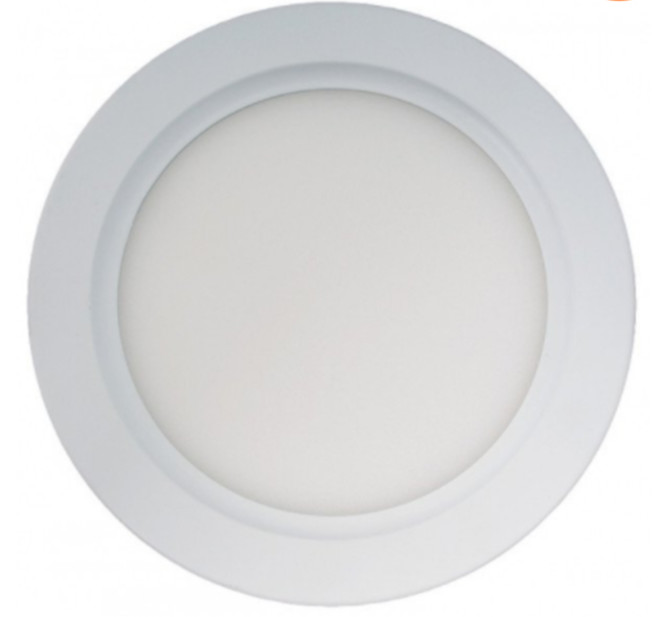

DOWNLIGHT SLIM 24V 24V 6W 350LM DIM 4500K
Product code
4144941
Low and dimmable, IP44 protected general-purpose light fixture operating on 24 V DC voltage. Compatible dimmers include, for example, electrical numbers 4018818 and 4018824.
Features- Power 10 W
- Protection class IP44
- Dimmable with 24 V connection devices
- Required air gap below the fixture: 15-22 mm
- Adjustable color temperature 2700-6500 K
- CRI >80
- Beam angle 120°
- Does not include connection device
- Voltage (input) 24 V DC
- Frame and body made of aluminum
- Service life 50,000 h
- Warranty 5 years
- Fixture dimensions 10 W ř145 x 26 mm
- 4144940 (128063) 6 W 3000 K (mounting hole ř80-85 mm)
- 4144941 (128064) 6 W 4500 K (mounting hole ř80-85 mm)
- 4144924 (128103) 10 W 3000 K (mounting hole ř115-125 mm)
- 4144943 (128104) 10 W 4500 K (mounting hole ř115-125 mm)
- 4116667 (128163) 16 W 3000 K (mounting hole ř180-190 mm)
- 4116666 (128164) 16 W 4500 K (mounting hole ř180-190 mm)
Product details
Technical specifications
Product class (ETIM)Ceiling-/wall luminaire (EC002892)
Suitable for suspended mountingno
Suitable for ceiling mountingyes
Suitable for built-in mountingyes
Suitable for surface mountingno
Lamp typeLED not exchangeable
Housing materialAluminium
Housing colourWhite
Material coverPlastic, opal
Type of gridWhite
Voltage typeDC
Nominal voltage24-24 V
With control gearno
Light distributorDiffuser lens/optic/panel
Light distributionSymmetric
Beam angle<gt/> 80° - Extreme wide beam
Product codes
SAPDCE578
STK4144941
PLC4144941
GTIN/EAN6430058419839
Manufacturer part number128064
Vendor material number4144941
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0.848 l
Package weight0.15 kg
Base uniteach
Package units2 / 40
Package contents–
UNSPSC39111544
BrandFTLIGHT
VendorBLUE IMPORT BIM OY
Documents (4)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)2.061
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
