LED STRIP PRIME STRIP 24V LED STRIP 24V 12W

Product code
4228756

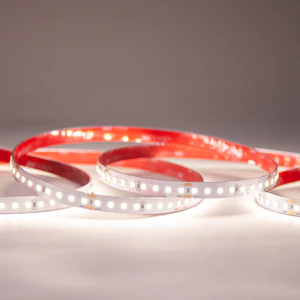

FTLIGHT PRIME is a professional-grade, high-quality, and efficient LED light strip. The FTLIGHT product has been measured, tested, and developed in Finland.

The 24 V operating voltage light strip offers improved luminous efficacy of up to 130 lm/W. Available color temperatures are either 3000 K warm white or 4000 K natural white. Power options are 6 W/m or 12 W/m, with a length of 5 meters (also available in 50 m). The strip’s base is white, so it remains invisible even in visible locations. Both ends of the LED strip feature 1.5-meter connecting cables, allowing easy division into two 2.5-meter sections without connectors. Additionally, high-quality 3M VHB tape securely holds the LED strip to the mounting surface.

Features
  • Power options: 6 W/m or 12 W/m
  • Protection rating: IP20 or IP65
  • Dimmable with 24 V power supplies or 12-24 V dimmers
  • Luminous efficacy: 130 lm/W per chip
  • Color temperature: 3000 K or 4000 K
  • CRI >84
  • Beam angle: 120°
  • Power supply not included
  • Input voltage: 24 V DC
  • Operating temperature: -25 to +35 °C
  • Service life: 50,000 hours
  • Warranty: 3 years
  • Dimensions: length 5 m, width 10 mm (12 W/m strip also available in 50 m length)
  • 1.5 m connecting cables on both ends of the strip
  • High-quality 3M VHB RED tape
Advantages of FTLIGHT PRIME LED Strip
  • The strip’s base is white, making it invisible even in visible locations.
  • 1.5-meter connecting cables on both ends allow easy division into two sections without connectors.
  • High-quality 3M VHB red tape securely adheres to the mounting surface.
  • Long service life – reinforced materials and improved heat dissipation.
This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Light ribbon/-hose/-strip (EC002706)
ModelStrip
Mounting methodSurface mounting
Lamp typeLED not exchangeable
Number of nodes per meter128
Lamp power per meter12 W
Luminous flux per meter1560 lm
Luminaire efficacy130 lm/W
Voltage typeDC
Lamp voltage24-24 V
Beam angle120 °
Type of control gearLED operating device voltage-controlled
Rated lifetime L70/B50 at 25 °C50000 h
Degree of protection (IP)IP20
Colour of lightWhite
Colour temperature4000-40000 K

Product codes

SAPDCE829
STK4228756
PLC4228756
GTIN/EAN6418536012574
Manufacturer part number128403
Vendor material number4228756

Basic information

Package measurements (L x W x H)260 x 240 x 15 mm
Package volume0.936 l
Package weight0.16 kg
Base uniteach
Package units1 / 40
Package contents
UNSPSC39111544
BrandFTLIGHT
VendorBLUE IMPORT BIM OY

Documents (2)

Brochures & documents
