LED STRIP PRIME STRIP COB COB 24V 14W 4000K IP20

Product code
4144963

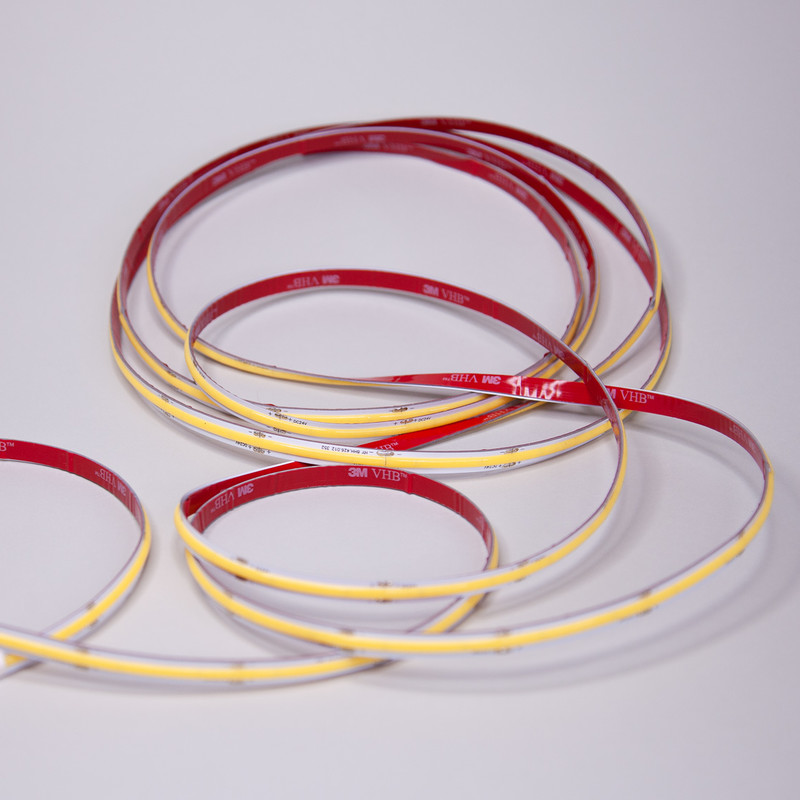

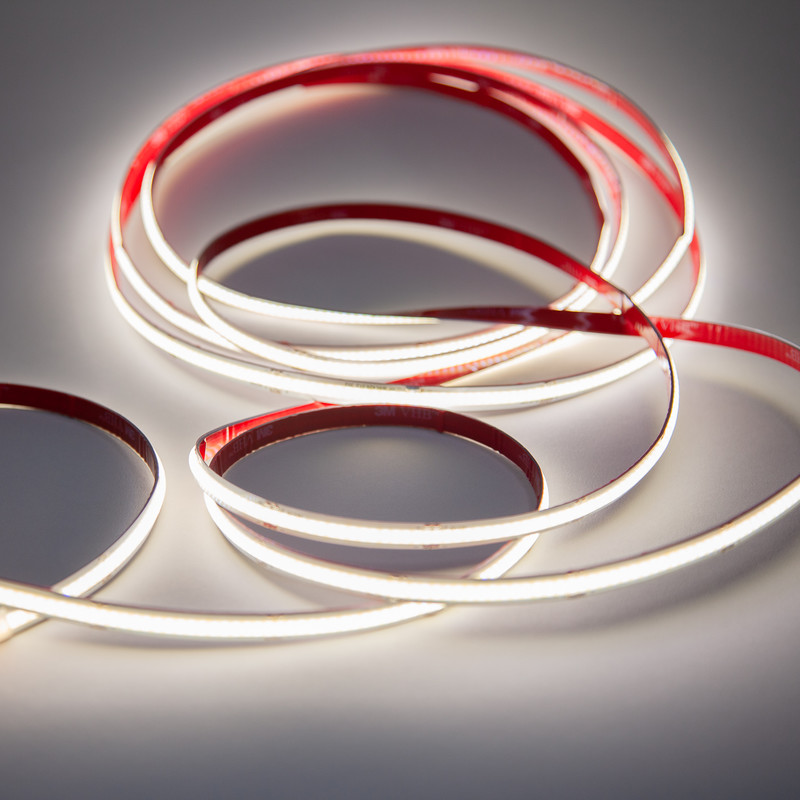

The FTLIGHT COB LED strip light operates at 24 V and offers excellent luminous efficacy and color rendering. The strip provides uniform light with no visible individual LED points. Available color temperatures are 3000 K (warm white) or 4000 K (natural white). Power options are 6, 10, or 14 W/m, with a length of 5 meters. Both ends of the strip have 1.5 m connection cables and feature a highly adhesive 3M VHB tape.

Features
  • Power: 6 /10/14 W/m
  • Luminous flux: 3000 K: 425/750/1150 lm/m and 4000 K: 450/800/1200 lm/m
  • Protection class IP20, 6 W also IP65
  • Dimmable with 24 V power supplies and LED dimmers
  • Color temperature: 3000/4000 K
  • CRI >90
  • Beam angle: 170°
  • Does not include a power supply
  • Voltage (input): 24 V DC
  • Operating temperature: -25 to +35 °C
  • Service life: 50,000 h
  • Warranty: 3 years
  • Dimensions: length 5 m, width 8 mm for 6 W and 10 W, 10 mm for 14 W
Advantages of the FTLIGHT PRIME LED strip
  • The strip’s base is white, so it remains invisible even in visible locations.
  • Each end has 1.5 m connection cables, allowing easy cutting into two sections without connectors.
  • The 3M VHB red, high-quality tape adheres securely to the mounting surface.
  • Long service life – reinforced materials and improved heat dissipation.
This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Light ribbon/-hose/-strip (EC002706)
ModelStrip
Mounting methodSurface mounting
Lamp typeLED not exchangeable
Number of nodes per meter528
Lamp power per meter14 W
Luminous flux per meter1200 lm
Voltage typeDC
Beam angle170 °
Type of control gearLED operating device voltage-controlled
Rated lifetime L70/B50 at 25 °C50000 h
Degree of protection (IP)IP20
Max. system power70 W
Colour of lightWhite
Colour temperature4000-4000 K
Colour rendering index CRI90-100

Product codes

SAPDCE805
STK4144963
PLC4144963
GTIN/EAN6418536012772
Manufacturer part number128506
Vendor material number4144963

Basic information

Package measurements (L x W x H)260 x 240 x 15 mm
Package volume0.936 l
Package weight0.14 kg
Base uniteach
Package units1 / 50
Package contents
UNSPSC39111544
BrandFTLIGHT
VendorBLUE IMPORT BIM OY
