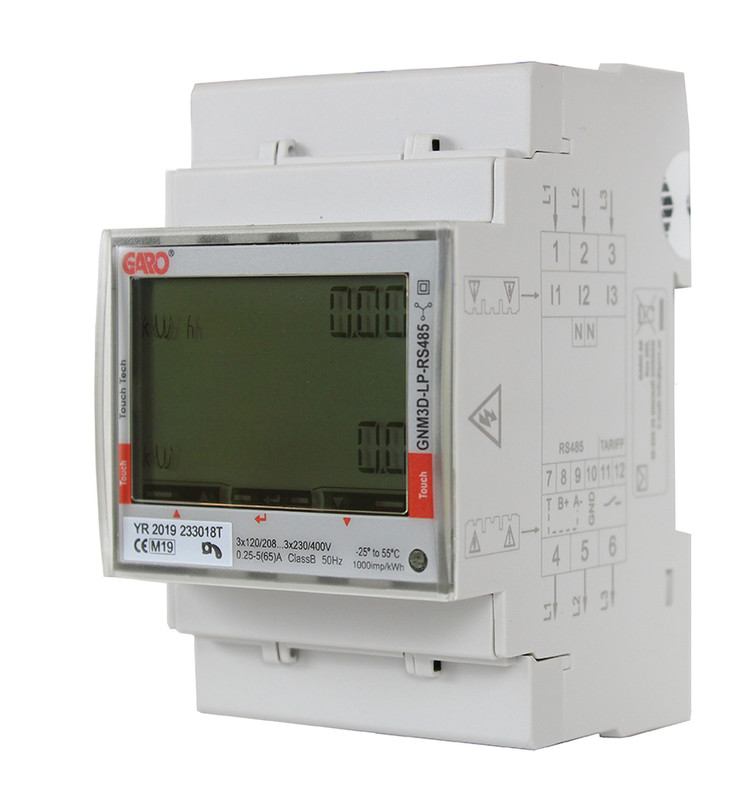

ENERGY METER GARO GNM3D-LP RS485 MODB 3X65A 3V
Product code
6711413
Energy meter, GNM3D-RS485, DIN mount, used for example in the DLM load management system of GLBDC and GTBDC charging stations when the site has a solar power plant. Direct connection meter. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Electricity meter (EC001506)
Type of meterElectronic
Nominal current (In)65 A
Max. current (Imax)65 A
Nominal voltage (Un) N-L208-400 V
Nominal voltage (Un) L-L208-400 V
Frequency50-60 Hz
Power consumption1 W
Accuracy classB
Pole typeThree conductor
ModelDirect measurement
Energy typeEffective power
Suitable forPurchase/supply
Tariff typeOne-tariff
Tariff controlInternal
Measurement type load profileno
Product codes
SAPCJJ021
STK6711413
PLC6711413
GTIN/EAN7331185187952
Manufacturer part number109306
Vendor material number6711413
Basic information
Package measurements (L x W x H)132 x 105 x 70 mm
Package volume0.97 l
Package weight0.3 kg
Base uniteach
Package units1 / 40
Package contents–
UNSPSC41113708
BrandGARO
VendorGARO FINLAND OY
