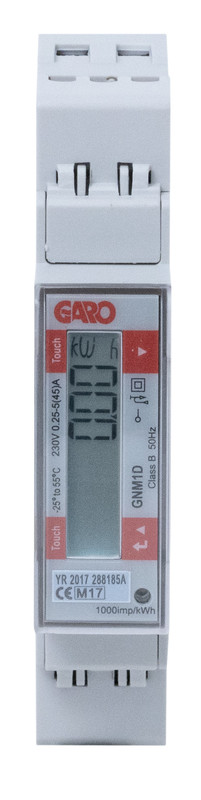

ENERGY METER GNM1D PULSSI 1X45A MID DIN
Product code
6711402
Energy meter GNM1D pulse, DIN mount, used in various energy measurement systems. MID classified meter. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Electricity meter (EC001506)
Type of meterElectronic
Nominal current (In)45 A
Max. current (Imax)45 A
Nominal voltage (Un) N-L161-276 V
Nominal voltage (Un) L-L161-276 V
Frequency50-60 Hz
Accuracy classB
Pole typeSingle phase
ModelDirect measurement
Energy typeEffective power
Suitable forPurchase
Tariff typeOne-tariff
Tariff controlInternal
Measurement type load profileno
Escapement mechanismno
Product codes
SAPCLF480
STK6711402
PLC6711402
GTIN/EAN7331185129297
Manufacturer part number108043
Vendor material number6711402
Basic information
Package measurements (L x W x H)28 x 115 x 160 mm
Package volume0.515 l
Package weight0.08 kg
Base uniteach
Package units1
Package contents–
UNSPSC41113640
BrandGARO
VendorGARO FINLAND OY
