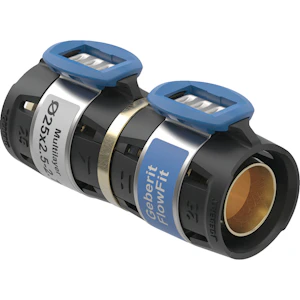

ADAPTER FLOWFIT FWF-3RD PARTY 20X20X2,8-2,9

Geberit FlowFit is an innovative compression fitting system that makes it easy to achieve a perfect and rapid installation process. Smooth water flow, brilliant ideas, and innovative product details make the Geberit FlowFit system the pipeline system of the future.

Features

• only two compression nuts for the entire system
• 8 different pipe and fitting sizes, 16–75 mm
• clear color codes on compression nuts and fittings
• no uncertainty regarding insertion depth – inspection windows on fittings
• the compression nut is reliably placed into the compression unit on the side of the fitting, where the compression indicator guides it securely into the correct position
• compression units can be easily rotated to the desired direction, facilitating work in confined spaces
• compression units made from stainless steel
• lead-free metal fittings, REACH compliant
• no need to calibrate or deburr cut pipes
• clearly visible compression indicators on uncompressioned joints
• will definitely leak if not compressed
• protective caps on all fittings and pipe ends protect against dirt and damage on site
• can be easily connected to other Geberit supply systems using transition pieces
• mounting points easy to install, independent of fitting positioning
• pre-insulated pipes available

System Information

• pipe sizes: 16, 20, 25, 32, 40, 50, 63, and 75 mm
• maximum operating pressure of the system is 10 bar, 16 bar for cold water pipes (0–20 °C)
• operating temperature for water: 0–70 °C (up to 80 °C for heating systems)
• diffusion-tight
• stable against UV radiation, but continuous sunlight exposure should be avoided

This product description is an automated translation of the original Finnish description.
