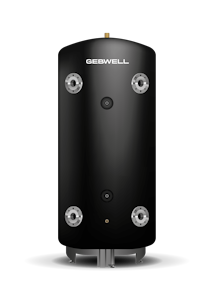

ACCUMULATOR GEBWELL G-ENERGY COOLING 1000 BUFFER3B

Product code
5238073
G-Energy Cooling is a buffer tank designed for cooling systems. The G-Energy Cooling buffer tank is suitable as a buffer vessel for water chillers and other mechanically refrigerated systems. Buffer tanks stabilize conditions between compressor start-ups and reduce the number of compressor start cycles. The buffer tank features 19 mm cellular rubber insulation. The G-Energy Cooling buffer tank is available in 501, 1000, and 2000 liter capacities and in 3 and 6 bar pressure classes. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Storage tank (heating/cooling system) (EC012339)
Suitable for central heatingyes
Suitable for heat pumpyes
Mounting methodFloor standing
Material tankSteel
Surface protection inner sideUntreated
Surface protection outer sideCoated
Material casingOther
With insulationyes
Material insulationOther
Volume1000 l
Height2130 mm
Diameter890 mm
Max. operating pressure3 bar
Max. temperature110 °C
Connection 1Flange

Product codes

SAPCFX834
HPAC5238073
PLC5238073
GTIN/EAN6415852380738
Manufacturer part numberGEC5238073
Vendor material number5238073

Basic information

Package measurements (L x W x H)890 x 890 x 2130 mm
Package volume1687.173 l
Package weight260 kg
Base uniteach
Package units1 / 1875
Package contents
UNSPSC27121802
BrandGEBWELL
VendorGEBWELL OY
The country of origin stated by the supplierFinland

Documents (4)

Brochures & documents

Environment and safety

Manufacturer

NameGebwell Oy
Postal addressPatruunapolku 5, 79100 Leppävirta, Finland
