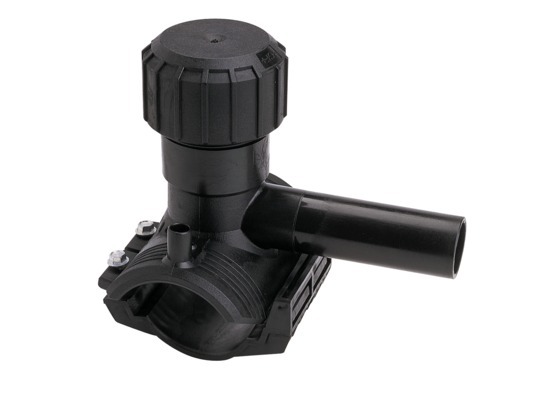

ELECTROFUSION DRILLSADDLE GF 63x32 PN16 WATER
Product code
1833442
Modular ELGEF Plus saddles form a perfect product package – branch saddles, branch saddles equipped with Gas-Stop function, drilled branch valves, shut-off saddle fittings, repair saddles, and nipple saddles. The branch saddle – also referred to by the shorter term saddle – is the core of our modular system. Only a few components are needed for all applications. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Broaching saddle (EC011014)
MaterialPlastic
Material qualityOther
Suitable for pipe diameterDN 50
Suitable for outer pipe diameter63 - 63 mm
Mounted on pipeElectric weld
Nominal diameterDN 50
Outer pipe diameter32 mm
ConnectionElectric welded sleeve
Max. operating pressure at 20 °C16 bar
Product codes
SAPAFB057
HPAC1833442
PLC1833442
GTIN/EAN7611704356596
Manufacturer part number193131434
Vendor material number193131434
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0 l
Package weight0.43 kg
Base uniteach
Package units1 / 6 / 216
Package contents–
UNSPSC40142017
BrandGEORG FISCHER
VendorGEORG FISCHER AB SE
Documents (4)
Brochures & documents
Links
Environment and safety
Features
Nordic PolymarkYes
Made from PVCNo
Warranty (years)1
RecyclableYes
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)1.3545
GWP, uniteach
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
Manufacturer
NameGeorg Fischer Ab
Postal addressIlmalantori 4, 00240 Helsinki
