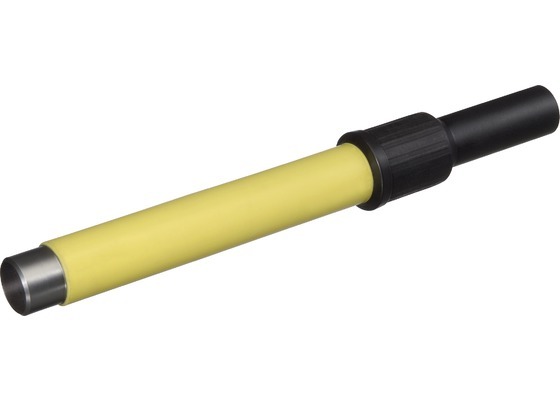

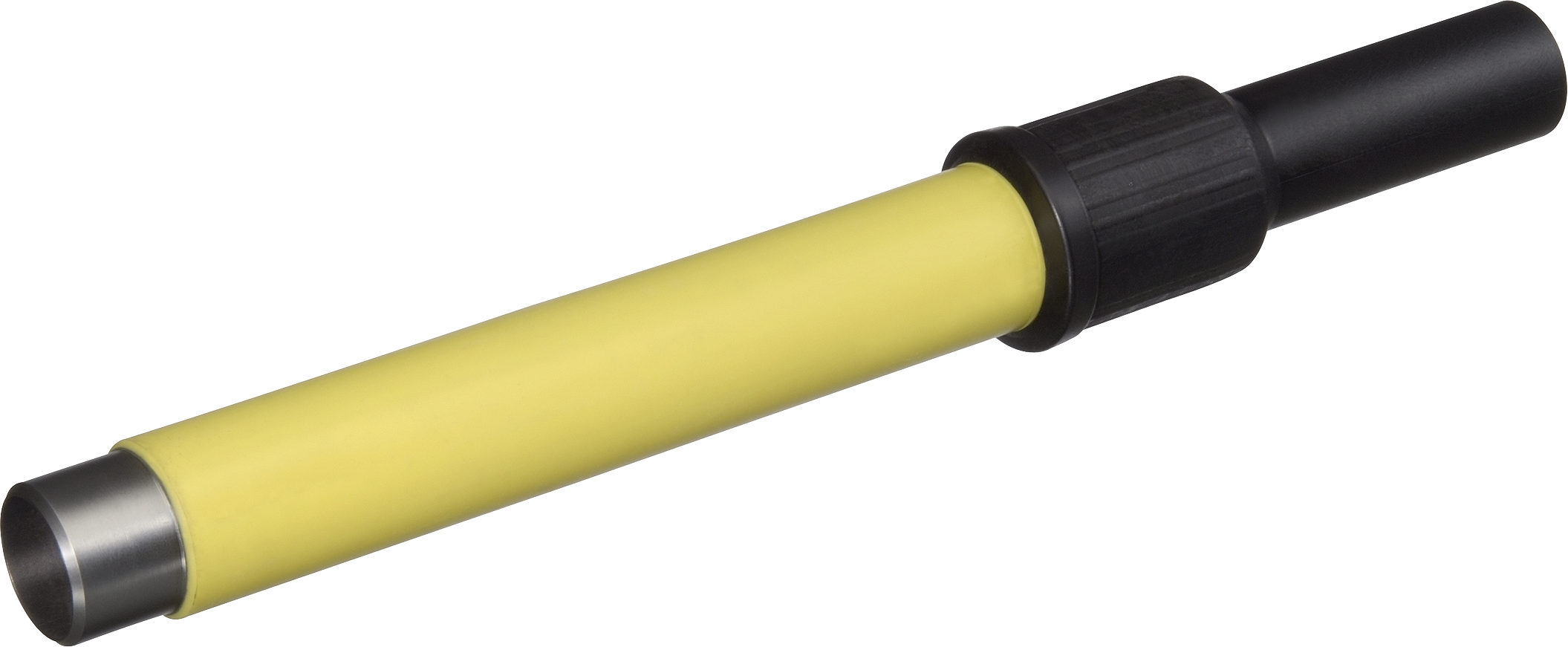

TRA FITTING PE100 SDR11 160x6 PN16
Product code
1834062
The use of polyethylene as a material for pipelines is most common in underground gas and water pipes. Its benefits are also recognized in the construction industry and for industrial pipelines. GF Piping Systems sells polyethylene electrofusion joints under the product name ELGEF Plus. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Cast iron
Material quality connection 1NBR (nitrile rubber)
Surface treatment connection 1Other
Material connection 2Cast iron
Material quality connection 2Other
Surface treatment connection 2Other
Nominal diameter connection 1DN 150
Outer pipe diameter connection 1160 mm
Connection 1Plastic welded end
Nominal diameter connection 26 inch (150)
Connection 2Welding connection
Material sealingNBR (nitrile rubber)
Max. operating pressure at 20 °C27 bar
Standard Dimension Ratio (SDR)11
With sealing rings/gasketsyes
Product codes
SAPAMM047
HPAC1834062
PLC1834062
GTIN/EAN7611704434768
Manufacturer part number775641655
Vendor material number775641655
Basic information
Package measurements (L x W x H)22.5 x 60 x 22.5 mm
Package volume0.03 l
Package weight11.3 kg
Base uniteach
Package units1 / 25
Package contents–
UNSPSC40171502
BrandGEORG FISCHER
VendorGEORG FISCHER AB SE
Documents (4)
Brochures & documents
Links
Environment and safety
Features
Made from PVCNo
Warranty (years)1
RecyclableYes
Manufacturer
NameGeorg Fischer Ab
Postal addressIlmalantori 4, 00240 Helsinki
