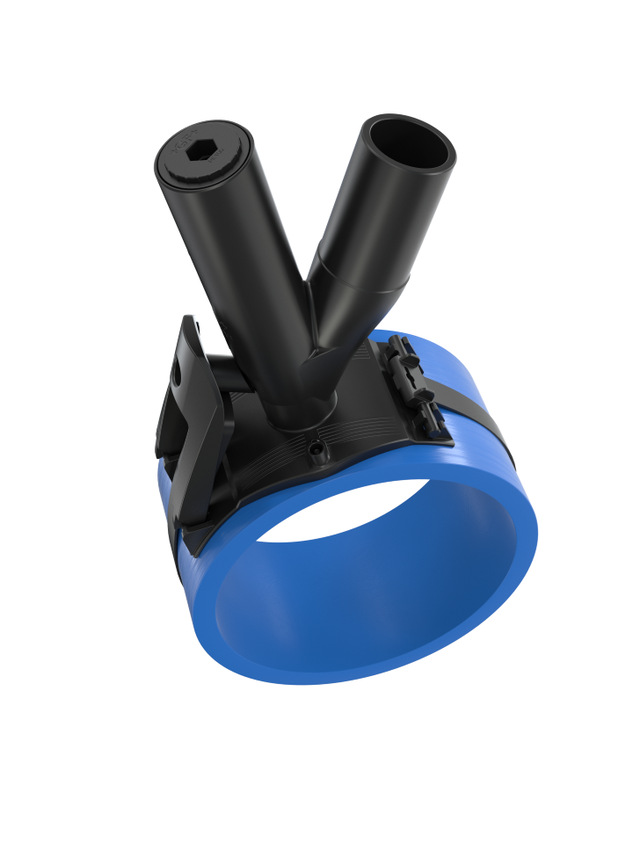

Y-Tapping Saddle d225-d63 PE100 SDR11

Features

• 10 bar gas / 16 bar water
• Installation is quick and easy thanks to the lever system
• Hot-Tap drilling is leak-free thanks to the integrated pipe cutter and fixed end stops
• Low installation height
• Excellent flow characteristics
• The branch drill is compatible with the electrically weldable ELGEF Plus cap, enhancing safety: End cap 753961610 (Do3=32mm) / End cap 753961611 (for Do3=63mm)
• Test pressure plug available as a separate accessory: 799199290
• 4 mm connections with welded joint indicators featuring motion limiters
• Threaded plug with O-ring seal
• Drilling is performed by turning with a 17 mm wrench.

This product description is an automated translation of the original Finnish description.
