JUNCTION BOX GW44008 (240X190X90) IP55 HF
Product code
3466019
Halogen-free enclosure for normal use with film seals GWT 650°C/TP 85°C. High mechanical protection class IK 07. The enclosure is manufactured from durable technopolymer in accordance with standards EN 60670-1 (CEI 23-48) and IEC 60670-22 (CEI 23-94). Mounting plates available for the enclosure: galvanized steel mounting plate (3466042/GW44616) and insulated plastic mounting plate (3466755/GW44626). This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Box/housing for surface mounting on the wall/ceiling (EC002600)
ModelJunction box
Equipped withNone
ShapeRectangular
Mounting methodWall-/ceiling mounting
Mounting in the soilno
Mounting under waterno
For tube diameterOther
Number of inlets12
Inlet from the rearno

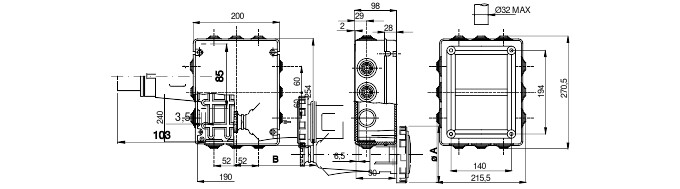

Length215.5 mm
Width270.5 mm
Depth98 mm
Connectableno
Type of housing feed-throughTrimmable step membrane
MaterialPlastic
Product codes
SAPGDJ277
STK3466019
PLC3466019
GTIN/EAN8011564013735
Manufacturer part numberGW44008
Vendor material numberGW44008
Basic information
Package measurements (L x W x H)249 x 191 x 91 mm
Package volume4.328 l
Package weight0.66 kg
Base uniteach
Package units1 / 12 / 12 / 300
Package contents–
UNSPSC39121304
BrandGEWISS
VendorPERFORMANCE IN LIGHTING OY FINLAND
