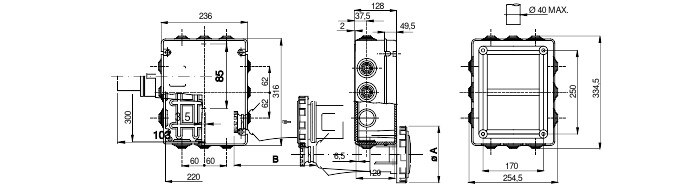

JUNCTION BOX GW44009 (300X220X120) IP55 HF
Product code
3466020
Halogen-free enclosure for normal use with film seals GWT 650°C/TP 85°C. High mechanical protection class IK 07. The enclosure is manufactured from durable technopolymer in accordance with standards EN 60670-1 (CEI 23-48) and IEC 60670-22 (CEI 23-94). Mounting plates are available for the enclosure: mounting plate galvanized steel (3466043/GW44617) and mounting plate insulated plastic (3466756/GW44627). This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Box/housing for surface mounting on the wall/ceiling (EC002600)
ModelJunction box
Equipped withNone
ShapeRectangular
Mounting methodWall-/ceiling mounting
Mounting in the soilno
Mounting under waterno
For tube diameterOther
Number of inlets12
Inlet from the rearno
Length334.5 mm
Width254.5 mm
Depth128 mm
Connectableno
Type of housing feed-throughTrimmable step membrane
MaterialPlastic
Product codes
SAPGDJ278
STK3466020
PLC3466020
GTIN/EAN8011564013742
Manufacturer part numberGW44009
Vendor material numberGW44009
Basic information
Package measurements (L x W x H)306 x 225 x 121 mm
Package volume8.331 l
Package weight1.16 kg
Base uniteach
Package units1 / 6 / 6 / 150
Package contents–
UNSPSC39121304
BrandGEWISS
VendorPERFORMANCE IN LIGHTING OY FINLAND
