JUNCTION BOX GW44010 (380X300X120) IP55 HF
Product code
3466021
Halogen-free enclosure for normal use with film seals GWT 650°C/TP 85°C. High mechanical protection class IK 07. The enclosure is manufactured from durable technopolymer in accordance with standards EN 60670-1 (CEI 23-48) and IEC 60670-22 (CEI 23-94). Mounting plates are available for the enclosure: galvanized steel mounting plate (3466044/GW44618) and insulated plastic mounting plate (3466757/GW44628). This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Box/housing for surface mounting on the wall/ceiling (EC002600)
ModelJunction box
Equipped withNone
ShapeRectangular
Mounting methodWall-/ceiling mounting
Mounting in the soilno
Mounting under waterno
For tube diameterOther
Number of inlets12
Inlet from the rearno

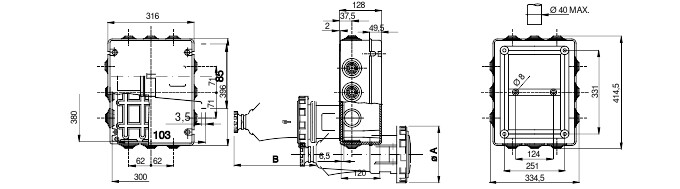

Length414.5 mm
Width334.5 mm
Depth128 mm
Connectableno
Type of housing feed-throughTrimmable step membrane
MaterialPlastic
Product codes
SAPGDJ279
STK3466021
PLC3466021
GTIN/EAN8011564013759
Manufacturer part numberGW44010
Vendor material numberGW44010
Basic information
Package measurements (L x W x H)402 x 319 x 124 mm
Package volume15.902 l
Package weight1.64 kg
Base uniteach
Package units1 / 4 / 4 / 100
Package contents–
UNSPSC39121304
BrandGEWISS
VendorPERFORMANCE IN LIGHTING OY FINLAND
