JUNCTION BOX GW44011 (460X380X120) IP55 HF

Product code
3466022
Halogen-free enclosure for normal use with gasket seals GWT 650°C/TP 85°C. High mechanical protection class IK 07. The enclosure is manufactured from durable technopolymer in accordance with standards EN 60670-1 (CEI 23-48) and IEC 60670-22 (CEI 23-94). Mounting plates are available for the enclosure: galvanized steel mounting plate (3466045/GW44619) and insulated plastic mounting plate (3466758/GW44629). This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Box/housing for surface mounting on the wall/ceiling (EC002600)
ModelJunction box
Equipped withNone
ShapeRectangular
Mounting methodWall-/ceiling mounting
Mounting in the soilno
Mounting under waterno
For tube diameterOther
Number of inlets14
Inlet from the rearno

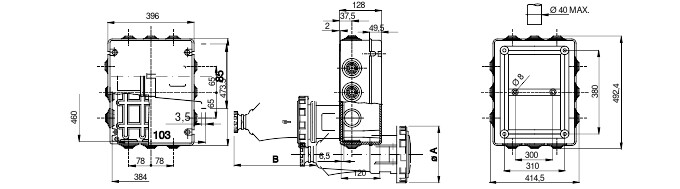

Length442.5 mm
Width414.5 mm
Depth128 mm
Connectableno
Type of housing feed-throughTrimmable step membrane
MaterialPlastic

Product codes

SAPGDJ280
STK3466022
PLC3466022
GTIN/EAN8011564013766
Manufacturer part numberGW44011
Vendor material numberGW44011

Basic information

Package measurements (L x W x H)464 x 385 x 122 mm
Package volume21.794 l
Package weight2.34 kg
Base uniteach
Package units1 / 3 / 3 / 60
Package contents
UNSPSC39121304
BrandGEWISS
VendorPERFORMANCE IN LIGHTING OY FINLAND
