JUNCTION BOX GW44060 (300X300X120) IP55
Product code
3466705
Halogen-free enclosure for special applications (e.g., floors, suspended ceilings) equipped with penetration seals GWT 960°C/TP 85°C. High mechanical protection class IK 07. The enclosure is manufactured from durable technopolymer in accordance with standards EN 60670-1 (CEI 23-48) and IEC 60670-22 (CEI 23-94). This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Box/housing for surface mounting on the wall/ceiling (EC002600)
ModelJunction box
Equipped withNone
ShapeRectangular
Mounting methodWall-/ceiling mounting
Mounting in the soilno
Mounting under waterno
For tube diameterOther
Number of inlets12
Inlet from the rearno

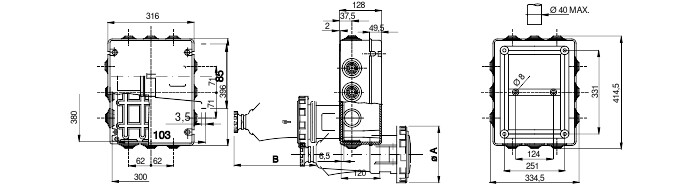

Length414.5 mm
Width334.5 mm
Depth128 mm
Connectableno
Type of housing feed-throughTrimmable step membrane
MaterialPlastic
Product codes
SAPDBR676
STK3466705
PLC3466705
GTIN/EAN8011564243859
Manufacturer part numberGW44060
Vendor material numberGW44060
Basic information
Package measurements (L x W x H)435 x 355 x 135 mm
Package volume20.847 l
Package weight1.919 kg
Base uniteach
Package units1 / 4 / 4 / 64
Package contents–
UNSPSC39121304
BrandGEWISS
VendorPERFORMANCE IN LIGHTING OY FINLAND
