JUNCTION BOX GW44117 (190X140X110) IP56 HF
Product code
3466684
Halogen-free enclosure for normal use with smooth sides GWT 650°C/TP 85°C. High mechanical protection class IK 08. The enclosure is manufactured from durable technopolymer in accordance with standards EN 60670-1 (CEI 23-48) and IEC 60670-22 (CEI 23-94). Mounting plates are available for the enclosure: mounting plate galvanized steel (3466753/GW44615) and mounting plate insulated plastic (3466754/GW44625). This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Box/housing for surface mounting on the wall/ceiling (EC002600)
ModelJunction box
Equipped withNone
ShapeRectangular
Mounting methodWall-/ceiling mounting
Mounting in the soilno
Mounting under waterno
For tube diameterOther
Number of inlets0
Inlet from the rearno

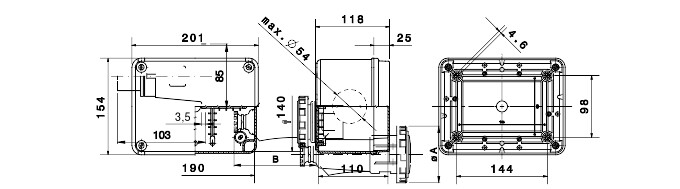

Length201 mm
Width154 mm
Depth118 mm
Connectableno
Type of housing feed-throughNone
MaterialPlastic
Product codes
SAPDBR655
STK3466684
PLC3466684
GTIN/EAN8011564763487
Manufacturer part numberGW44117
Vendor material numberGW44117
Basic information
Package measurements (L x W x H)205 x 160 x 123 mm
Package volume4.034 l
Package weight0.453 kg
Base uniteach
Package units1 / 16 / 256
Package contents–
UNSPSC39121304
BrandGEWISS
VendorPERFORMANCE IN LIGHTING OY FINLAND
