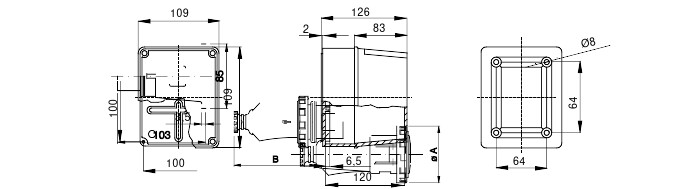

JUNCTION BOX GW44254 (100X100X120) IP56
Product code
3466717
Halogen-free enclosure for special applications (e.g., floors, suspended ceilings) with smooth sides GWT 960°C/TP 85°C. High mechanical protection class IK 07. The enclosure is manufactured from durable technopolymer in accordance with standards EN 60670-1 (CEI 23-48) and IEC 60670-22 (CEI 23-94). This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Box/housing for surface mounting on the wall/ceiling (EC002600)
ModelJunction box
Equipped withNone
ShapeSquare
Mounting methodWall-/ceiling mounting
Mounting in the soilno
Mounting under waterno
For tube diameterOther
Number of inlets0
Inlet from the rearno
Length109 mm
Width109 mm
Depth126 mm
Connectableno
Type of housing feed-throughNone
MaterialPlastic
Product codes
SAPDBR688
STK3466717
PLC3466717
GTIN/EAN8011564298729
Manufacturer part numberGW44254
Vendor material numberGW44254
Basic information
Package measurements (L x W x H)115 x 115 x 130 mm
Package volume1.719 l
Package weight0.197 kg
Base uniteach
Package units1 / 45 / 45 / 360
Package contents–
UNSPSC39121304
BrandGEWISS
VendorPERFORMANCE IN LIGHTING OY FINLAND
