JUNCTION BOX GW44256 (150X110X140) IP56
Product code
3466719
Halogen-free enclosure for special applications (e.g., floors, suspended ceilings) with smooth sides GWT 960°C/TP 85°C. High mechanical protection class IK 07. The enclosure is manufactured from durable technopolymer in accordance with standards EN 60670-1 (CEI 23-48) and IEC 60670-22 (CEI 23-94). This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Box/housing for surface mounting on the wall/ceiling (EC002600)
ModelJunction box
Equipped withNone
ShapeRectangular
Mounting methodWall-/ceiling mounting
Mounting in the soilno
Mounting under waterno
For tube diameterOther
Number of inlets0
Inlet from the rearno

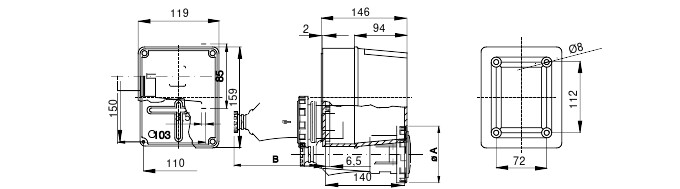

Length159 mm
Width119 mm
Depth146 mm
Connectableno
Type of housing feed-throughNone
MaterialPlastic
Product codes
SAPDBR690
STK3466719
PLC3466719
GTIN/EAN8011564298743
Manufacturer part numberGW44256
Vendor material numberGW44256
Basic information
Package measurements (L x W x H)165 x 125 x 150 mm
Package volume3.094 l
Package weight0.317 kg
Base uniteach
Package units1 / 24 / 24 / 96
Package contents–
UNSPSC39121304
BrandGEWISS
VendorPERFORMANCE IN LIGHTING OY FINLAND
