JUNCTION BOX GW44410 (300X300X120) IP56 HF
Product code
3466731
Halogen-free enclosure for industrial use with smooth sides GWT 650°C/TP 110°C. High mechanical protection class IK 08. The enclosure is manufactured from durable technopolymer in accordance with standards EN 60670-1 (CEI 23-48) and IEC 60670-22 (CEI 23-94). Mounting plates available for the enclosure: mounting plate galvanized steel (3466044/GW44618) and mounting plate insulated plastic (3466757/GW44628). This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Box/housing for surface mounting on the wall/ceiling (EC002600)
ModelJunction box
Equipped withNone
ShapeRectangular
Mounting methodWall-/ceiling mounting
Mounting in the soilno
Mounting under waterno
For tube diameterOther
Number of inlets0
Inlet from the rearno

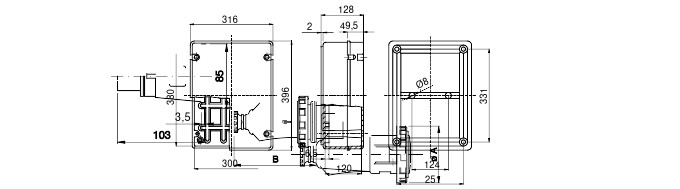

Length396 mm
Width316 mm
Depth128 mm
Connectableno
Type of housing feed-throughNone
MaterialPlastic
Product codes
SAPDBR702
STK3466731
PLC3466731
GTIN/EAN8011564013995
Manufacturer part numberGW44410
Vendor material numberGW44410
Basic information
Package measurements (L x W x H)400 x 320 x 135 mm
Package volume17.28 l
Package weight1.666 kg
Base uniteach
Package units1 / 4 / 4 / 64
Package contents–
UNSPSC39121304
BrandGEWISS
VendorPERFORMANCE IN LIGHTING OY FINLAND
