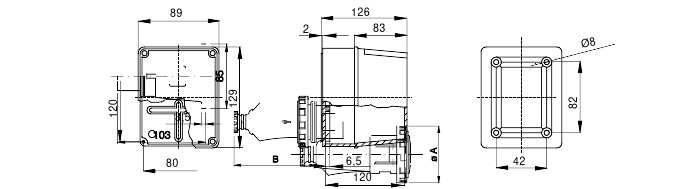

JUNCTION BOX GW44415 (120X80X120) IP56 HF
Product code
3466734
Halogen-free enclosure for industrial use with smooth sides GWT 650°C/TP 110°C. High mechanical protection class IK 08. The enclosure is manufactured from durable technopolymer in accordance with standards EN 60670-1 (CEI 23-48) and IEC 60670-22 (CEI 23-94). This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Box/housing for surface mounting on the wall/ceiling (EC002600)
ModelJunction box
Equipped withNone
ShapeSquare
Mounting methodWall-/ceiling mounting
Mounting in the soilno
Mounting under waterno
For tube diameterOther
Number of inlets0
Inlet from the rearno
Length129 mm
Width89 mm
Depth126 mm
Connectableno
Type of housing feed-throughNone
MaterialPlastic
Product codes
SAPDBR704
STK3466734
PLC3466734
GTIN/EAN8011564014022
Manufacturer part numberGW44415
Vendor material numberGW44415
Basic information
Package measurements (L x W x H)135 x 95 x 130 mm
Package volume1.667 l
Package weight0.181 kg
Base uniteach
Package units1 / 55 / 55 / 220
Package contents–
UNSPSC39121304
BrandGEWISS
VendorPERFORMANCE IN LIGHTING OY FINLAND
