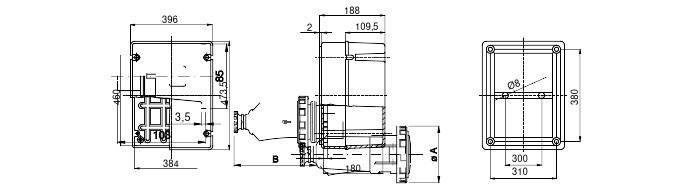

JUNCTION BOX GW44421 (460X380X180) IP56 HF
Product code
3466740
Halogen-free enclosure for industrial use with smooth sides GWT 650°C/TP 110°C. High mechanical protection class IK 08. The enclosure is manufactured from durable technopolymer in accordance with standards EN 60670-1 (CEI 23-48) and IEC 60670-22 (CEI 23-94). This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Box/housing for surface mounting on the wall/ceiling (EC002600)
ModelJunction box
Equipped withNone
ShapeRectangular
Mounting methodWall-/ceiling mounting
Mounting in the soilno
Mounting under waterno
For tube diameterOther
Number of inlets0
Inlet from the rearno
Length474 mm
Width396 mm
Depth188 mm
Connectableno
Type of housing feed-throughNone
MaterialPlastic
Product codes
SAPDBR710
STK3466740
PLC3466740
GTIN/EAN8011564014084
Manufacturer part numberGW44421
Vendor material numberGW44421
Basic information
Package measurements (L x W x H)480 x 400 x 193 mm
Package volume37.056 l
Package weight2.855 kg
Base uniteach
Package units1 / 2 / 2 / 32
Package contents–
UNSPSC39121304
BrandGEWISS
VendorPERFORMANCE IN LIGHTING OY FINLAND
