JUNCTION BOX GW44430 (300X300X120) IP56 HF
Product code
3466745
Halogen-free enclosure for industrial use. Smooth sides/clear cover GWT 650°C/TP 110°C. High mechanical protection class IK 08. The enclosure is manufactured from durable technopolymer in accordance with standards EN 60670-1 (CEI 23-48) and IEC 60670-22 (CEI 23-94). Mounting plates are available for the enclosure: mounting plate galvanized steel (3466044/GW44618) and mounting plate insulated plastic (3466757/GW44628). This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Box/housing for surface mounting on the wall/ceiling (EC002600)
ModelJunction box
Equipped withNone
ShapeRectangular
Mounting methodWall-/ceiling mounting
Mounting in the soilno
Mounting under waterno
For tube diameterOther
Number of inlets0
Inlet from the rearno

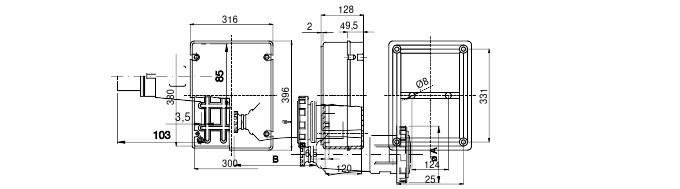

Length396 mm
Width316 mm
Depth128 mm
Connectableno
Type of housing feed-throughNone
MaterialPlastic
Product codes
SAPGDJ288
STK3466745
PLC3466745
GTIN/EAN8011564014138
Manufacturer part numberGW44430
Vendor material numberGW44430
Basic information
Package measurements (L x W x H)395 x 309 x 124 mm
Package volume15.135 l
Package weight1.62 kg
Base uniteach
Package units1 / 4 / 4 / 100
Package contents–
UNSPSC39121304
BrandGEWISS
VendorPERFORMANCE IN LIGHTING OY FINLAND
