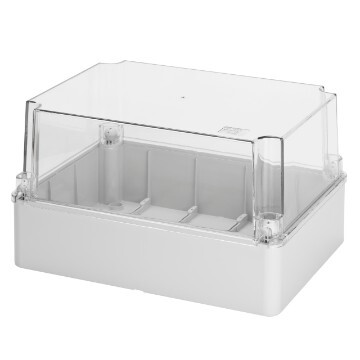

JUNCTION BOX GW44436 (150X110X140) IP56 HF
Product code
3466747
Halogen-free enclosure for industrial use with smooth sides/clear cover GWT 650°C/TP 110°C. High mechanical protection class IK 08. The enclosure is manufactured from durable technopolymer in accordance with standards EN 60670-1 (CEI 23-48) and IEC 60670-22 (CEI 23-94). This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Box/housing for surface mounting on the wall/ceiling (EC002600)
ModelJunction box
Equipped withNone
ShapeRectangular
Mounting methodWall-/ceiling mounting
Mounting in the soilno
Mounting under waterno
For tube diameterOther
Number of inlets0
Inlet from the rearno

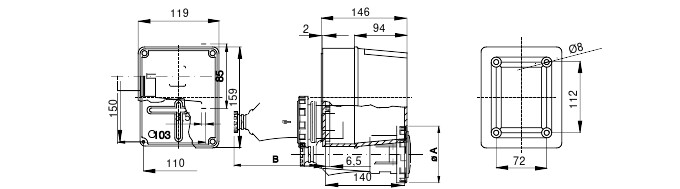

Length159 mm
Width119 mm
Depth146 mm
Connectableno
Type of housing feed-throughNone
MaterialPlastic
Product codes
SAPDBR711
STK3466747
PLC3466747
GTIN/EAN8011564014152
Manufacturer part numberGW44436
Vendor material numberGW44436
Basic information
Package measurements (L x W x H)165 x 125 x 150 mm
Package volume3.094 l
Package weight0.328 kg
Base uniteach
Package units1 / 24 / 24 / 384
Package contents–
UNSPSC39121304
BrandGEWISS
VendorPERFORMANCE IN LIGHTING OY FINLAND
