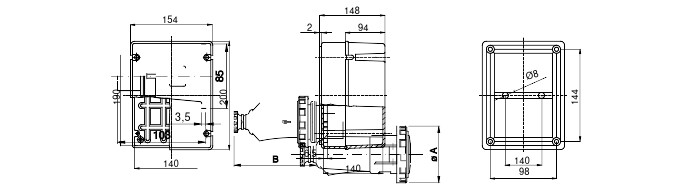

JUNCTION BOX GW44437 (190X140X140) IP56 HF

Product code
3466748
Halogen-free enclosure for industrial use with smooth sides/clear cover GWT 650°C/TP 110°C. High mechanical protection class IK 08. The enclosure is manufactured from durable technopolymer in accordance with standards EN 60670-1 (CEI 23-48) and IEC 60670-22 (CEI 23-94). Mounting plates are available for the enclosure: mounting plate galvanized steel (3466753/GW44615) and mounting plate insulated plastic (3466754/GW44625). This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Box/housing for surface mounting on the wall/ceiling (EC002600)
ModelJunction box
Equipped withNone
ShapeRectangular
Mounting methodWall-/ceiling mounting
Mounting in the soilno
Mounting under waterno
For tube diameterOther
Number of inlets0
Inlet from the rearno
Length200 mm
Width154 mm
Depth148 mm
Connectableno
Type of housing feed-throughNone
MaterialPlastic

Product codes

SAPDBR712
STK3466748
PLC3466748
GTIN/EAN8011564014169
Manufacturer part numberGW44437
Vendor material numberGW44437

Basic information

Package measurements (L x W x H)205 x 160 x 153 mm
Package volume5.018 l
Package weight0.554 kg
Base uniteach
Package units1 / 16 / 16 / 240
Package contents
UNSPSC39121304
BrandGEWISS
VendorPERFORMANCE IN LIGHTING OY FINLAND
