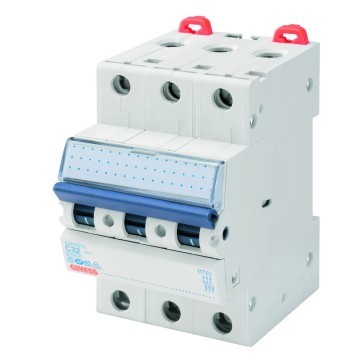

MCB GW92064 3X4A C-CURVE 6KA
Product code
3202340
GEWISS circuit breaker 3x4A C-curve 6kA (EN 60898) 230-400V. A fork-type busbar is compatible with this product. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Miniature circuit breaker (MCB) (EC000042)
Built-in depth72 mm
Release characteristicC
Number of poles (total)3
Number of protected poles3
Rated current4 A
Rated voltage400 V
Rated insulation voltage Ui500 V
Rated impulse withstand voltage Uimp4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6 kA
Voltage typeAC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V20 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10 kA
Frequency50-60 Hz
Power loss6.6 W
Product codes
SAPDBR473
STK3202340
PLC3202340
GTIN/EAN8011564057401
Manufacturer part numberGW92064
Vendor material numberGW92064
Basic information
Package measurements (L x W x H)96 x 78 x 54 mm
Package volume0.404 l
Package weight0.408 kg
Base uniteach
Package units1 / 2 / 8 / 512
Package contents–
UNSPSC39121603
BrandGEWISS
VendorPERFORMANCE IN LIGHTING OY FINLAND
