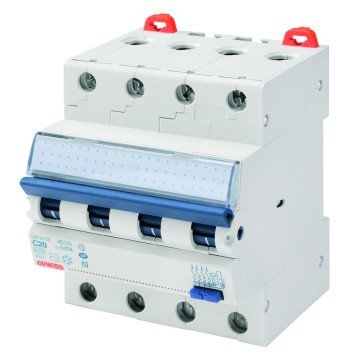

MCB GW92092 4X50A C-CURVE 6KA
Product code
3202362
GEWISS circuit breaker 4x50A C-curve 6kA (EN 60898) 230-400V. A fork-type busbar is suitable for this product. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Miniature circuit breaker (MCB) (EC000042)
Built-in depth72 mm
Release characteristicC
Number of poles (total)4
Number of protected poles4
Rated current50 A
Rated voltage400 V
Rated insulation voltage Ui500 V
Rated impulse withstand voltage Uimp4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6 kA
Voltage typeAC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V20 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V10 kA
Frequency50-60 Hz
Power loss19.12 W
Product codes
SAPDBR495
STK3202362
PLC3202362
GTIN/EAN8011564057616
Manufacturer part numberGW92092
Vendor material numberGW92092
Basic information
Package measurements (L x W x H)103 x 79 x 82 mm
Package volume0.667 l
Package weight0.572 kg
Base uniteach
Package units1 / 3 / 912
Package contents–
UNSPSC39121603
BrandGEWISS
VendorPERFORMANCE IN LIGHTING OY FINLAND
