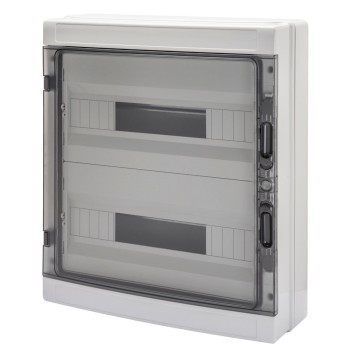

MODULAR ENCLOSURE SURFACE GW40107BS 36(18X2) M IP65
Product code
3466617
The Gewiss 40CD enclosure series is a high-quality and aesthetically pleasing solution offering durable installation for any purpose. The series includes enclosures ranging from IP40 rating up to IP65 rating and IK09 impact-resistant enclosures. Door options include white smooth or transparent. The series also offers a wide range of additional accessories. All materials are halogen-free.
Includes connectors N/PE (3x16) + (17x10) N/PE (3x16) + (17x10).
Features
- 36 (18 x 2) modules
- IP65
- dimensions (L x W x H) 410 x 463 x 140 mm
Product details
Technical specifications
Product class (ETIM)Small distribution board (EC000214)
Mounting methodSurface mounted
Number of rows2
Width in number of modular spacings18
Type of coveringDoor
Cover modelWith notch
Transparent cover/dooryes
Signal passing doorno
With lockno
Type of closureOther
Housing materialPlastic
Inner depth48 mm
Earthing terminal blockno
Neutral terminal blockno
DIN-railyes
With mounting plateno
Product codes
SAPCZF139
STK3466617
PLC3466617
GTIN/EAN8011564896635
Manufacturer part numberGW40107BS
Vendor material numberGW40107BS
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume33.511 l
Package weight3.657 kg
Base uniteach
Package units2 / 50
Package contents–
UNSPSC39121304
BrandGEWISS
VendorPERFORMANCE IN LIGHTING OY FINLAND
