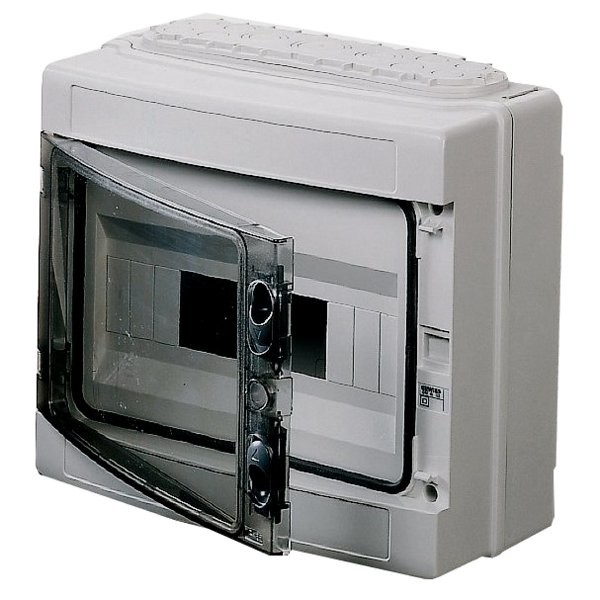

MODULAR ENCLOSURE SURFACE GW40123 1X12M IP65
Product code
3466083
The Gewiss 40CD enclosure series is a high-quality and aesthetically pleasing solution offering durable installation for any application. The series includes enclosures ranging from IP40 rating up to IP65 rating and IK09 impact-resistant enclosures. Door options include white smooth or transparent. The series also offers a wide range of accessories. All materials are halogen-free.
Includes connectors N (3 x 35) + (10 x 10) PE (3 x 35) + (10 x 10). The enclosure is equipped with a die-cast lid and a membrane seal lid.
Features
- 1 x 12 module
- IP65
- dimensions (L x W x H) 298 x 260 x 140 mm
Product details
Technical specifications
Product class (ETIM)Small distribution board (EC000214)
Mounting methodSurface mounted
Number of rows1
Width in number of modular spacings12
Type of coveringDoor
Cover modelWith notch
Transparent cover/dooryes
Signal passing doorno
With lockno
Type of closureOther
Housing materialPlastic
Inner depth48 mm
Earthing terminal blockyes
Neutral terminal blockyes
DIN-railyes
With mounting plateno
Product codes
SAPCZF131
STK3466083
PLC3466083
GTIN/EAN8011564103016
Manufacturer part numberGW40123
Vendor material numberGW40123
Basic information
Package measurements (L x W x H)300 x 280 x 150 mm
Package volume12.6 l
Package weight2 kg
Base uniteach
Package units1 / 6 / 120
Package contents–
UNSPSC39121304
BrandGEWISS
VendorPERFORMANCE IN LIGHTING OY FINLAND
