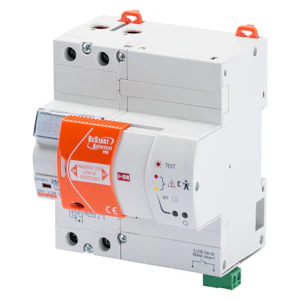

RESIDUAL CURRENT DEVICE GW90901N 30MA/2X25A

Product code
3202556
No product description available.

Product details

Technical specifications

Additional equipment attached at deliveryMonitoring unit with automatic reclosing
Additional equipment integratedSelftest, automatic reclosing and auxiliary switch
Built-in depth72 mm
Construction size (according to DIN 43880)2
Control voltage type auxiliary equipmentAC
Degree of protection (IP)IP20
Frequency50 Hz
Leakage current typeA
Mounting methodDIN rail
Number of poles2
Rated current25 A
Rated fault current0,03 A
Rated switch current auxiliary device25 A
Rated voltage230 V
Rated voltage auxiliary device230 V

Product codes

SAPCYL066
PLC3202556
STK3202556
GTIN/EAN8011564754249
Manufacturer part numberGW90901N
Vendor material numberGW90901N

Basic information

Package measurements (L x W x H)155 x 130 x 105 mm
Package volume2.116 l
Package weight0.736 kg
Base uniteach
Package units1 / 2 / 216
Package contents
UNSPSC39121614
BrandGEWISS
VendorGEWISS S.P.A.
