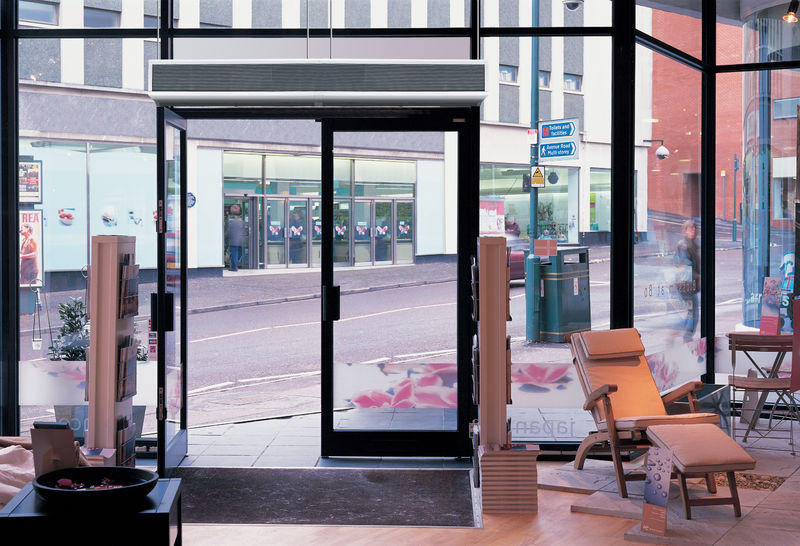

AIR BARRIER DAB10E, 6/12 KW, 400 V
Product code
7513022
- Installation on wall or ceiling (wall and ceiling mounts included)
- Maximum installation height 2.3m
- Adjustable air flow direction
- Can be started/stopped with remote control
- On/off switch
- Power selection 6000/12000W
- White
Product details
Technical specifications
Product class (ETIM)Electric air curtain (EC010007)
ModelFree-hanging
Max. mounting height (exhaust height)4 m
Max. door width1 m
Max. air volume3000 m³/h
Number of fan settings2
Number of heating levels2
Connection voltage of fans230 V
Connection voltage of heating element(s)400 V
Max. input power fans12 kW
Max. input current of fans1.47 A
Max. input power electric heating12 kW
Max. input current of heater30 A
Max. sound level (at a distance of 3 metres)58 dB(A)
Degree of protection (IP)IP21
Width1057 mm
Product codes
SAPADW164
HPAC7513022
PLC7513022
GTIN/EAN5011139110787
Manufacturer part number19820
Vendor material number7513022
Basic information
Package measurements (L x W x H)1700 x 430 x 500 mm
Package volume365.5 l
Package weight28 kg
Base uniteach
Package units1 / 6
Package contents–
UNSPSC40101701
BrandGLEN DIMPLEX NORDIC
VendorGLEN DIMPLEX NORDIC AS
