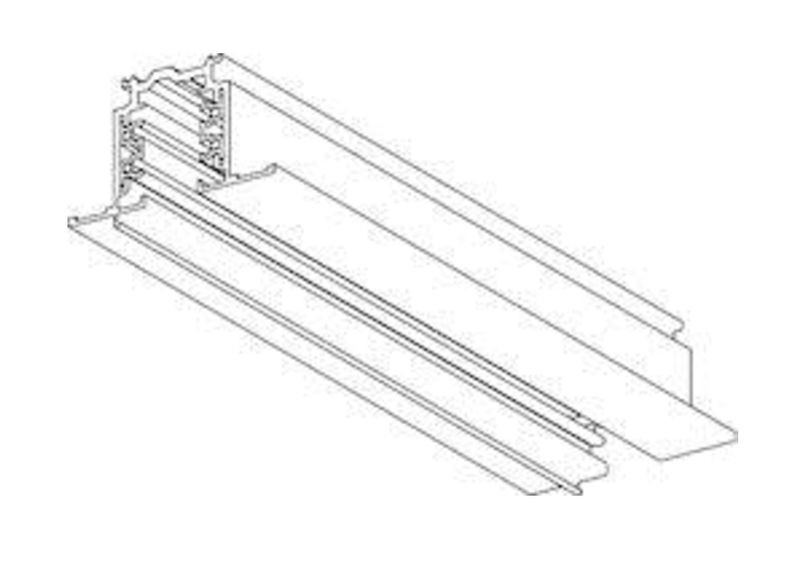

LIGHTING TRACK XTSF4100-1 3-V 400V/16A 1m GR
Product code
1450087
Technical information

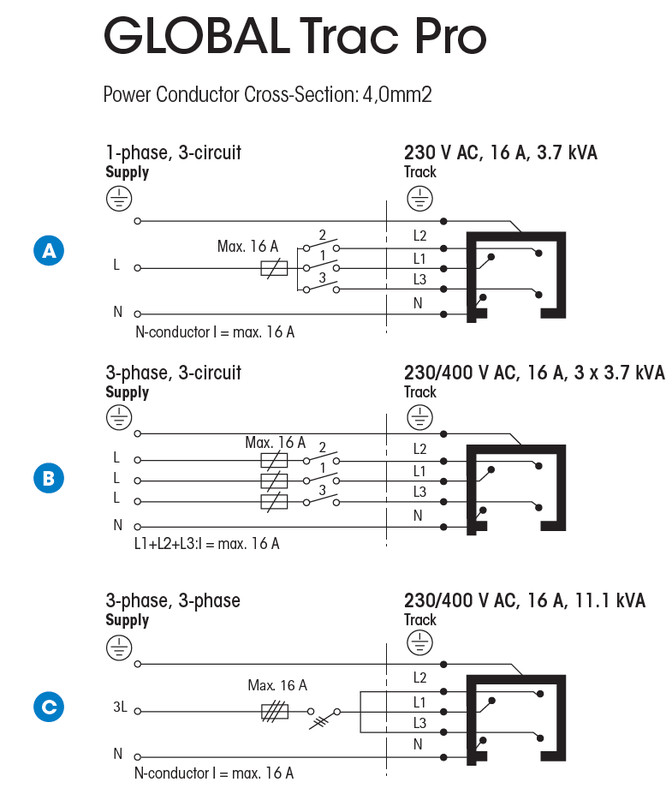

3-phase (3P+N+PE)
Un 400V, In 16A 50Hz
Protection class I, IP20 This product description is an automated translation of the original Finnish description.
3-phase (3P+N+PE)
Un 400V, In 16A 50Hz
Protection class I, IP20 This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Light-track (EC000101)
Number of groups/phases3
Nominal voltage230-400 V
Max. electrical capacity per phase3700 W
Suitable for bus connectionyes
ShapeRectangular
MaterialAluminium
Surface finishingGlossy
ColourGrey
Suitable for built-in mountingyes
Suitable for surface mountingno
Suitable for suspended mountingyes
Bendableno
Length1000 mm
Width56 mm
Height32.5 mm
Product codes
SAPASV313
STK1450087
PLC1450087
GTIN/EAN6410014500870
Manufacturer part numberXTSF4100-1
Vendor material number1450087
Basic information
Package measurements (L x W x H)1000 x 56 x 36 mm
Package volume2.016 l
Package weight0.967 kg
Base uniteach
Package units6 / 180
Package contents–
UNSPSC39131705
BrandGLOBAL TRAC
VendorOY LIVAL AB
The country of origin stated by the supplierFinland
