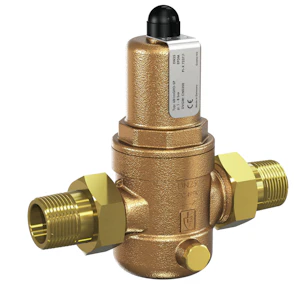

PRESSURE REDUCING VALVE 681 mGFO-SP-50 S17 EPDM
Product code
4132512
Pressure reducing valve for water, air, and gases. Suitable for domestic water systems, industrial applications, and fire protection systems. Body made of brass, seal made of EPDM. Inlet pressure max. 25 bar, outlet pressure adjustable from 1-8 bar (also available in pressure ranges of 5-15 bar or 0.5-2 bar). Maximum temperature +95 °C. Includes pressure gauge! This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Pressure reducing valve (EC010122)
Housing materialBronze
Material qualityBronze (Rg 5)
Product codes
SAPAAJ298
HPAC4132512
PLC4132512
GTIN/EAN6415841325122
Manufacturer part number681-2 MANO
Vendor material number681-2 MANO
Basic information
Package measurements (L x W x H)330 x 155 x 120 mm
Package volume6.138 l
Package weight7.2 kg
Base uniteach
Package units1
Package contents–
UNSPSC40141652
BrandGÖTZE
VendorGOETZE KG ARMATUREN
