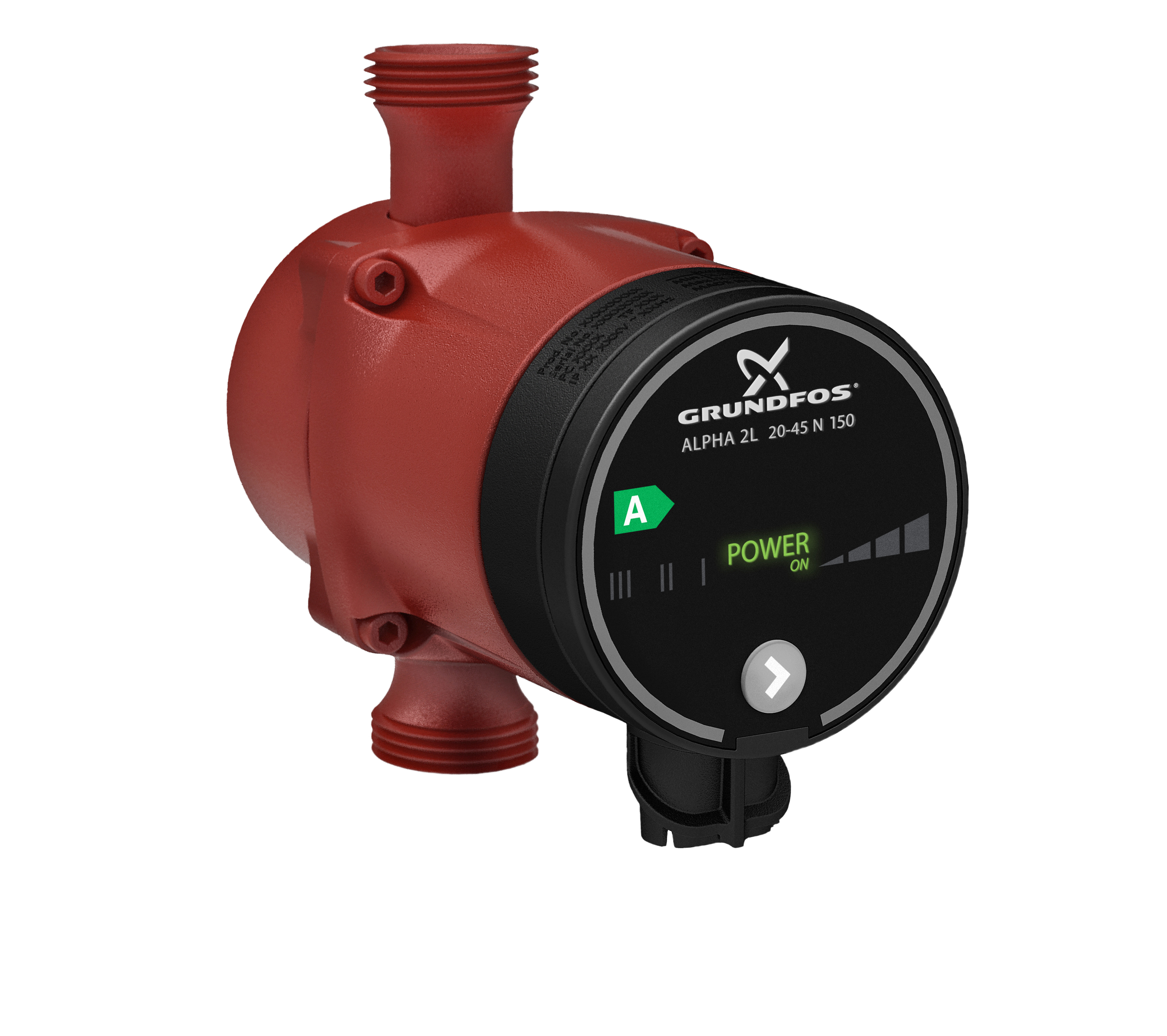

GRUNDFOS CIRCULATOR DHW ALPHA2L 20-45 N 150 1X230V
Product code
4615580
No product description available.
Product details
Technical specifications
Product class (ETIM)Built-in circulation pump (EC010980)
Material pump casingStainless steel
Material quality pump casingStainless steel 304 (1.4301)
Material impeller/pump wheelOther
Material quality impeller/pump wheelOther
Volume flow rate (BEP)1.65 m³/h
Discharge head at flow rate (BEP)20.1 kPa
Max. static height4.5 m
Max. operating pressure10 bar
Double pumpno
Electrical connectionOther
Rated voltage230 - 230 V
Number of phases1
Frequency50 Hz
Nominal current0.34 A
Motor power input (P1) per motor0.045 kW
Product codes
SAPALL099
PLC4615580
GTIN/EAN5710628917721
Manufacturer part number98094952
Vendor material number98094952
Basic information
Package measurements (L x W x H)200 x 170 x 110 mm
Package volume3.74 l
Package weight2.55 kg
Base uniteach
Package units1 / 252
Package contents–
UNSPSC40151504
VendorGRUNDFOS PUMPUT OY AB
Documents (1)
Images
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)18.2325
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000435
