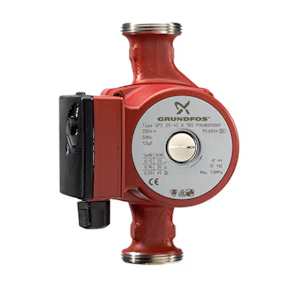

CIRCULATOR DHW GRUNDFOS UPS 25-80N 180 1X230V
Product code
4615614
Grundfos UP and UPS pumps are circulation pumps for domestic hot water. The pumps are single-phase wet rotor pumps. The pump housing is made of stainless steel. UP pumps operate at a single fixed speed, while UPS pumps have three different speeds for speed control. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Built-in circulation pump (EC010980)
Material pump casingStainless steel
Material quality pump casingStainless steel 304 (1.4308)
Material impeller/pump wheelOther
Material quality impeller/pump wheelOther
Volume flow rate (BEP)4.95 m³/h
Discharge head at flow rate (BEP)44.71 kPa
Max. discharge flow4.95 m³/h
Max. static height8 m
Max. operating pressure10 bar
Double pumpno
Electrical connectionTerminals
Number of phases1
Frequency50 Hz
Nominal current0.7 A
Motor power input (P1) per motor0.165 kW
Product codes
SAPAIS972
HPAC4615614
PLC4615614
GTIN/EAN5700310346588
Manufacturer part number95906439
Vendor material number95906439
Basic information
Package measurements (L x W x H)201 x 198 x 208 mm
Package volume8.278 l
Package weight4.904 kg
Base uniteach
Package units1 / 120
Package contents–
UNSPSC40151504
BrandGRUNDFOS
VendorGRUNDFOS PUMPUT OY AB
The country of origin stated by the supplierFinland
Documents (4)
Environment and safety
Sustainability categories
Energy efficiency
Features
Availability of spare parts after discontinuation (years)2
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)35.3088
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000435
Manufacturer
NameOy Grundfos Pumput Ab
Websitewww.grundfos.com/fi
Postal addressTrukkikuja 1, FI-01360 VANTAA, Finland
