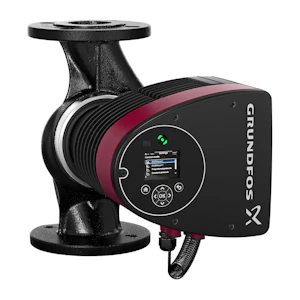

CIRCULATOR PUMP GRUNDFOS MAGNA3 50-100F PN6/10
Product code
4615154
MAGNA3 is an intelligent circulator pump for large heating systems; its unique AUTOADAPT and FLOWLIMIT functions make operation easy and save energy by always adjusting the pump’s performance to optimum levels. The MAGNA3 pump comes standard with alarm and operating status information for building automation integration and a 0-10 V control option. The pump features a convenient display for easy commissioning. The temperature range of the pumped fluid is -10 to +110 degrees.
Features- Optimal system performance. Set, read, and limit flow directly from the display or via Grundfos GO.
- Low operating costs. No leaking shaft seals and the best energy efficiency on the market.
- Alarm and operating status information seamlessly integrated into building automation. Relay outputs as standard.
- 0-10 V control as standard, enabling zero-flow shutdown.
- Temperature difference control and heat energy measurement possible with an external sensor.
Product details
Technical specifications
Product class (ETIM)Built-in circulation pump (EC010980)
Material pump casingCast iron
Material quality pump casingCast iron EN-GJL-250 (GG 25)
Material impeller/pump wheelOther
Material quality impeller/pump wheelOther
Volume flow rate (BEP)16.77 m³/h
Discharge head at flow rate (BEP)55.12 kPa
Max. discharge flow16.77 m³/h
Max. static height10 m
Max. operating pressure10 bar
Double pumpno
Electrical connectionTerminals
Number of phases1
Frequency50/60 Hz
Nominal current1.86 A
Motor power input (P1) per motor0.403 kW
Product codes
SAPAMR162
HPAC4615154
PLC4615154
GTIN/EAN5710626493586
Manufacturer part number97924283
Vendor material number97924283
Basic information
Package measurements (L x W x H)306 x 338 x 444 mm
Package volume45.922 l
Package weight20.348 kg
Base uniteach
Package units1
Package contents–
UNSPSC40151504
BrandGRUNDFOS
VendorGRUNDFOS PUMPUT OY AB
The country of origin stated by the supplierFinland
Documents (7)
Images
Brochures & documents
Links
Environment and safety
Features
Availability of spare parts after discontinuation (years)2
Energy efficiency index (EEI)0.18
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)146.5056
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000435
Manufacturer
NameOy Grundfos Pumput Ab
Websitewww.grundfos.com/fi
Postal addressTrukkikuja 1, FI-01360 VANTAA, Finland
