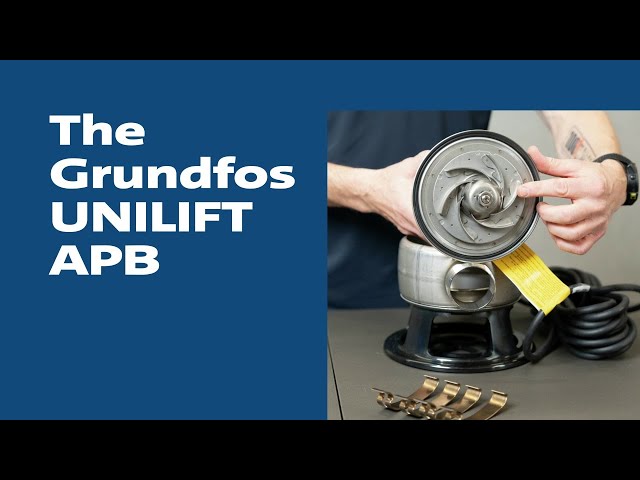

DRAINAGE PUMP GRUNDFOS AP35B.50.08.3

Product code
4836114

If Grundfos Unilift CC or KP is not sufficient for your pumping needs, choose Unilift AP. Unilift AP is made of stainless steel and is designed for demanding dewatering applications, such as lowering the groundwater level. All AP pumps are portable but also suitable for permanent installation. AP pumps are installed vertically, but the AP35 models can also be installed horizontally or at an angle. All models are available with or without a top handle and in single-phase or three-phase versions.

The Unilift AP 35.B pump can handle grey water or sludge containing solids up to 35 mm. It features a mounting base and the pump outlet is horizontal. Thanks to the quick-release couplings, maintenance is fast and effortless.

The Unilift AP 50.B pump can handle grey water or sludge containing solids up to 50 mm. It features a mounting base and the pump outlet is horizontal. Thanks to the quick-release couplings, maintenance is fast and effortless.

This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Submersible wastewater pump (EC010733)
Material motor housingStainless steel
Material quality motor housingStainless steel 316 (1.4401)
Material pump casingStainless steel
Material quality pump casingStainless steel 304 (1.4301)
Material impeller/pump wheelStainless steel
Material quality impeller/pump wheelStainless steel 304 (1.4301)
Volume flow rate (BEP)10.19 m³/h
Discharge head at flow rate (BEP)75.59 kPa
Max. discharge flow21 m³/h
Max. static height13 m
Electrical connectionCable
Cable length5 m
Number of phases3
Frequency50 Hz
Nominal current1.98 A

Product codes

SAPAML040
HPAC4836114
PLC4836114
GTIN/EAN5700391489150
Manufacturer part number96004577
Vendor material number96004577

Basic information

Package measurements (L x W x H)220 x 255 x 500 mm
Package volume28.05 l
Package weight10.27 kg
Base uniteach
Package units1 / 15
Package contents
UNSPSC40151513
BrandGRUNDFOS
VendorGRUNDFOS PUMPUT OY AB

Environment and safety

Carbon footprint data

Carbon footprint of product manufacturing (A1–A3 GWP value)73.944
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000435

Manufacturer

NameOy Grundfos Pumput Ab
Postal addressTrukkikuja 1, FI-01360 VANTAA, Finland
