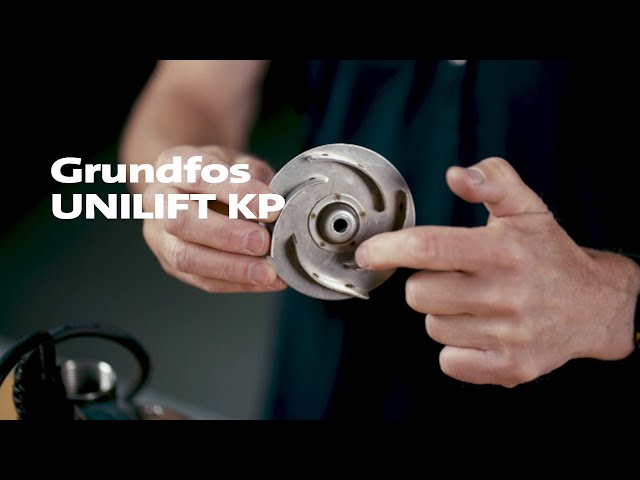

DRAINAGE PUMP GRUNDFOS KP 250 A-1 10M
Product code
4822507
Grundfos Unilift KP pumps are suitable for, for example, pumping rainwater, pumping groundwater that has entered a basement, emptying swimming and shower pools, or emptying or transferring greywater. The single-phase motor has a built-in motor protection.
- fluid temperature: 0 … 50 °C
- maximum particle passage: Ø 10 mm
- maximum head, H: 9 m
- due to the integrated pipe lever, the Unilift KP-AV pump is suitable for shafts with a diameter of only 24 cm
- stainless steel
Name key: M = without lever, A = with lever, AV = with pipe lever. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Submersible wastewater pump (EC010733)
Material motor housingStainless steel
Material quality motor housingStainless steel 316 (1.4401)
Material pump casingStainless steel
Material quality pump casingStainless steel 304 (1.4301)
Material impeller/pump wheelStainless steel
Material quality impeller/pump wheelStainless steel 304 (1.4301)
Volume flow rate (BEP)5.81 m³/h
Discharge head at flow rate (BEP)50.2 kPa
Max. discharge flow11.2 m³/h
Max. static height7.5 m
Electrical connectionConnection cable with plug
Cable length10 m
Rated voltage220 - 230 V
Number of phases1
Frequency50 Hz
Product codes
SAPAAP699
HPAC4822507
PLC4822507
GTIN/EAN5700391116612
Manufacturer part number012H1800
Vendor material number012H1800
Basic information
Package measurements (L x W x H)305 x 160 x 300 mm
Package volume14.64 l
Package weight7.694 kg
Base uniteach
Package units1 / 20 / 60
Package contents–
UNSPSC40151511
BrandGRUNDFOS
VendorGRUNDFOS PUMPUT OY AB
The country of origin stated by the supplierFinland
Documents (8)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)55.3968
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000435
Manufacturer
NameOy Grundfos Pumput Ab
Websitewww.grundfos.com/fi
Postal addressTrukkikuja 1, FI-01360 VANTAA, Finland
