SINGLE-STAGE PUMP GRUNDFOS TP 65-120/2-A-F-A-BQQE 400Y
Product code
98585759
No product description available.
Product details
Technical specifications
Material pump casingCast iron
Material quality pump casingCast iron GG 25 (GJL-250)
Material impeller/pump wheelStainless steel
Material quality impeller/pump wheelStainless steel 304 (1.4301)
Volume flow rate (BEP)25.7 m³/h
Discharge head at flow rate (BEP)81.37 kPa
Max. discharge flow25.7 m³/h
Max. static height12 m
Max. operating pressure10 bar
Double pumpfalse

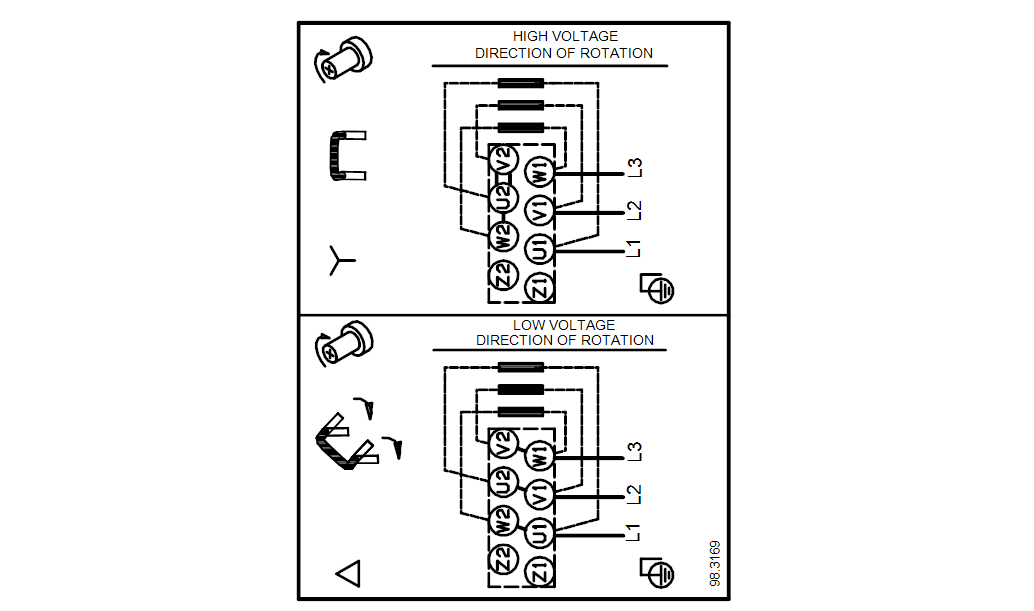

Electrical connectionTerminals
Rated voltage380 ... 415 V
Number of phases3
FrequencyOther
Nominal current4.35 A
Product codes
SAPCGX239
HPACCGX239
PLC98585759
GTIN/EAN5711497681317
Manufacturer part number98585759
Vendor material number98585759
Basic information
Package measurements (L x W x H)400 x 300 x 654 mm
Package volume78.48 l
Package weight37.7 kg
Base uniteach
Package units1
Package contents–
UNSPSC40151503
BrandGRUNDFOS
VendorGRUNDFOS PUMPUT OY AB
Documents (1)
Images
