SINGLE-STAGE PUMP GRUNDFOS TP 65-60/2-A-F-A-BQQE 400Y
Product code
98509608
No product description available.
Product details
Technical specifications
Material pump casingCast iron
Material quality pump casingCast iron GG 25 (GJL-250)
Material impeller/pump wheelStainless steel
Material quality impeller/pump wheelStainless steel 304 (1.4301)
Volume flow rate (BEP)26.7 m³/h
Discharge head at flow rate (BEP)37.75 kPa
Max. discharge flow26.7 m³/h
Max. static height6 m
Max. operating pressure10 bar
Double pumpfalse

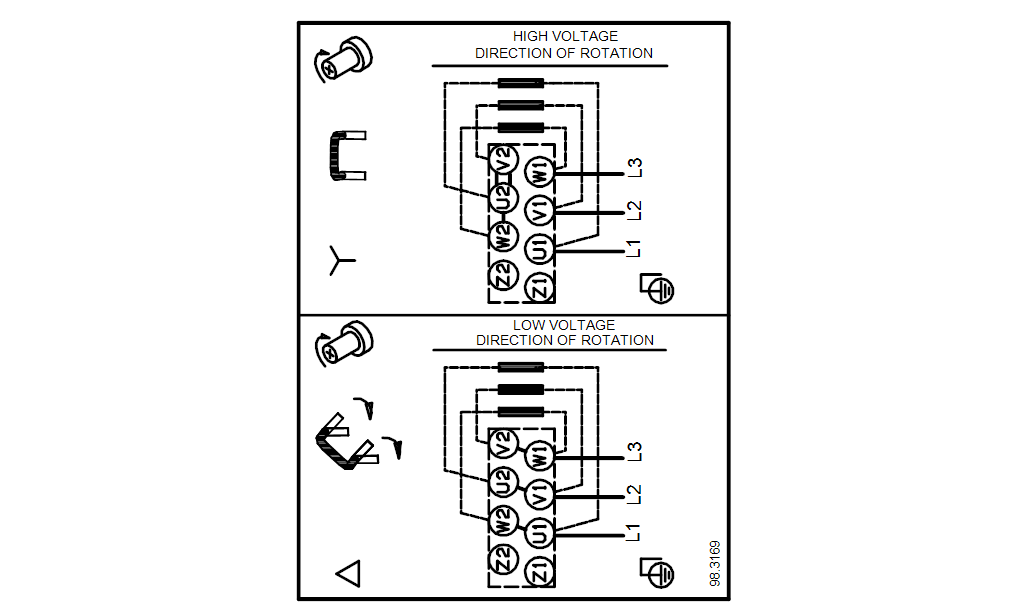

Electrical connectionTerminals
Rated voltage380 ... 415 V
Number of phases3
FrequencyOther
Nominal current1.44 A
Product codes
SAPCGX231
HPACCGX231
PLC98509608
GTIN/EAN5711496338281
Manufacturer part number98509608
Vendor material number98509608
Basic information
Package measurements (L x W x H)400 x 300 x 654 mm
Package volume78.48 l
Package weight29.6 kg
Base uniteach
Package units1
Package contents–
UNSPSC40151503
BrandGRUNDFOS
VendorGRUNDFOS PUMPUT OY AB
