SINGLE-STAGE PUMP GRUNDFOS TP 65-660/2-A-F-A-BQQE 400D

Name: SINGLE-STAGE PUMP GRUNDFOS TP 65-660/2-A-F-A-BQQE 400D
Brand: GRUNDFOS
SKU: CGX199

Product code

96087528

No product description available.

Product details

Material pump casingCast iron

Material quality pump casingCast iron GG 25 (GJL-250)

Material impeller/pump wheelCast iron

Material quality impeller/pump wheelCast iron GGG 40 (GJS-400-15)

Volume flow rate (BEP)71.3 m³/h

Discharge head at flow rate (BEP)556.88 kPa

Max. discharge flow71.3 m³/h

Max. static height66 m

Max. operating pressure16 bar

Double pumpfalse

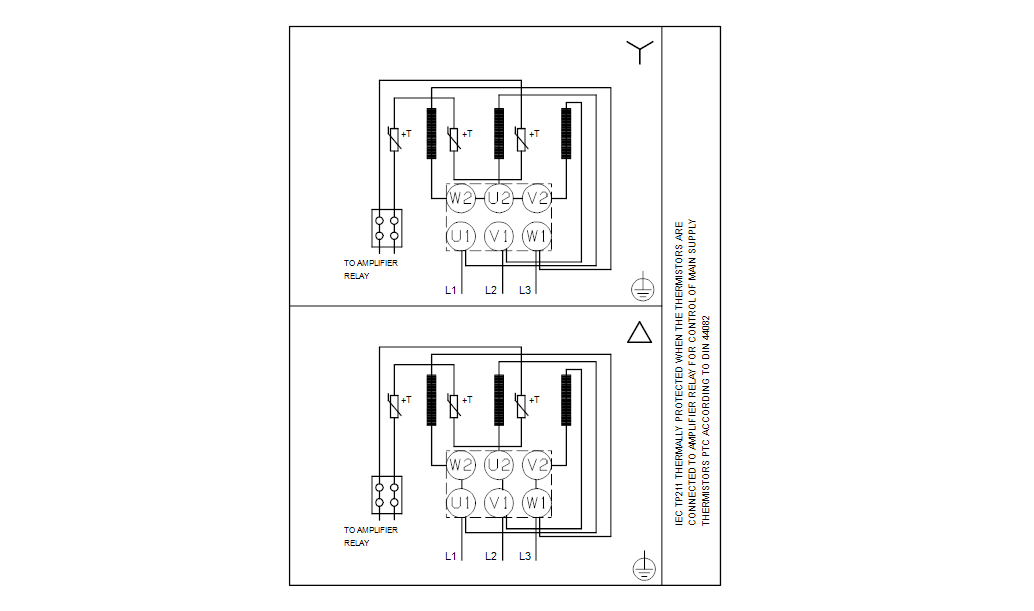

Electrical connectionTerminals

Rated voltage380 ... 415 V

Number of phases3

Frequency50 Hz

Nominal current33.36 A

SAPCGX199

HPACCGX199

PLC96087528

GTIN/EAN5700395314939

Manufacturer part number96087528

Vendor material number96087528

Package measurements (L x W x H)1200 x 800 x 1190 mm

Package volume1142.4 l

Package weight207 kg

Base uniteach

Package units1

Package contents–

UNSPSC40151503

BrandGRUNDFOS

VendorGRUNDFOS PUMPUT OY AB
