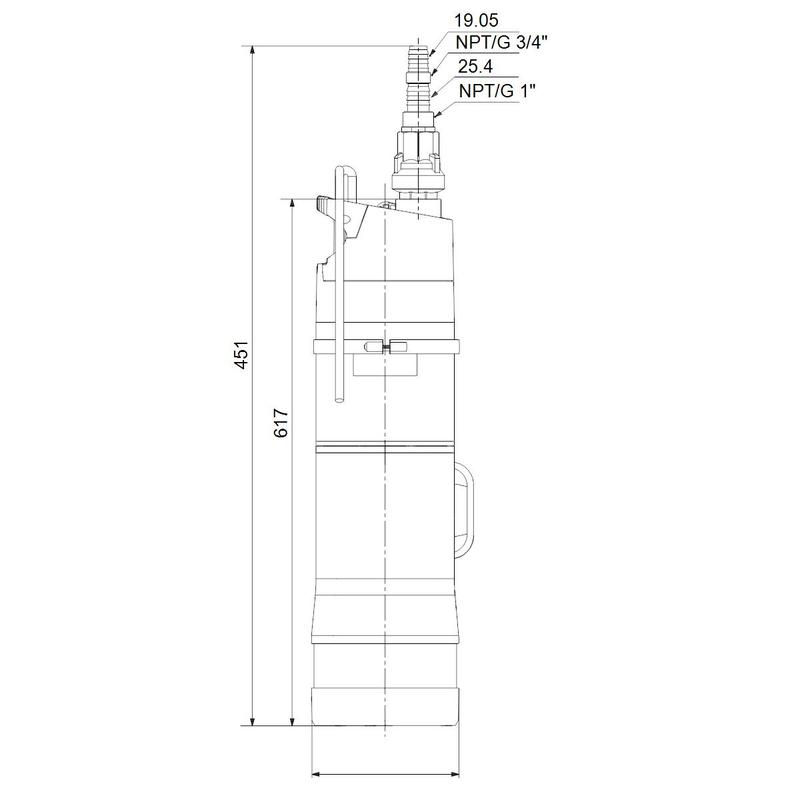

SUBMERSIBLE PUMP GRUNDFOS SB 3-45 M
Product code
4822627
High-quality submersible pump. Grundfos SB and SBA pumps are designed for pumping clean water. The pumps are excellently suited for rainwater systems and small household wells.
Typical applications:
- traditional wells
- shallow wells
- rainwater collection in tanks
- pressure boosting for water supply
- draining garden ponds
- irrigation.
Product details
Technical specifications
Product class (ETIM)Pressurisation unit (EC010737)
Rated voltage230 V 50/60Hz
Motor power0.8 kW
Lifting height45 m
Rated volumetric flow3 m³/h
Suitable for tap wateryes
Suitable for rainwateryes
Suitable for sprinkling/irrigationyes
Material pump casingFibre-reinforced plastic
Material quality pump casingPP-GF
Material impeller/pump wheelPolypropylene (PP)
Material quality impeller/pump wheelPP-GF
Material reservoirOther
Material quality reservoirOther
Number of pumps1
Volume flow rate (BEP)3.01 m³/h
Product codes
SAPCZL113
HPAC4822627
PLC4822627
GTIN/EAN5715118519003
Manufacturer part number92712338
Vendor material number92712338
Basic information
Package measurements (L x W x H)570 x 215 x 270 mm
Package volume33.089 l
Package weight10.8 kg
Base uniteach
Package units1 / 21
Package contents–
UNSPSC40151510
BrandGRUNDFOS
VendorGRUNDFOS PUMPUT OY AB
Documents (5)
Environment and safety
Sustainability categories
Circular economy
Features
Availability of spare parts after discontinuation (years)10
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)77.76
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000435
Manufacturer
NameOy Grundfos Pumput Ab
Websitewww.grundfos.com/fi
Postal addressTrukkikuja 1, FI-01360 VANTAA, Finland
