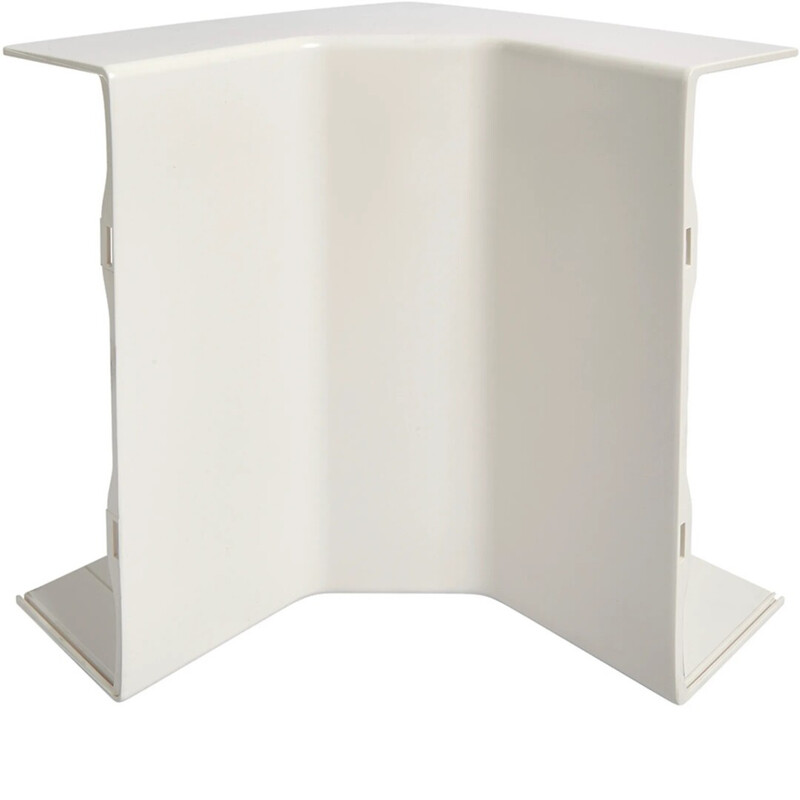

3D-CORNER TEHALIT GBD GBD501614J HF GBD 56X162 WHITE
Product code
1476231
The 3D corner made from halogen-free ABS plastic easily branches off vertical rises from an internal corner installation. Thanks to its material, the product is suitable for use with both plastic and aluminum cable ducts. The profiled piece that fits over the edges of the duct housing covers irregularities in the duct cut and ensures a neat installation. Compliance with EN 50085-1 and EN 50085-2-1. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Cross piece for wall duct (EC000878)
Width162 mm
Depth56 mm
Symmetricno
ModelMoulded hood
MaterialPlastic
Material qualityOther
Halogen freeyes
Surface protectionUntreated
ColourWhite
RAL-number9016
With protective foilno
Product codes
SAPCQC076
STK1476231
PLC1476231
GTIN/EAN4012740015271
Manufacturer part numberGBD501614J9016
Vendor material number1476231
Basic information
Package measurements (L x W x H)180 x 180 x 190 mm
Package volume6.156 l
Package weight0.262 kg
Base uniteach
Package units1 / 2 / 144
Package contents–
UNSPSC39121302
BrandHAGER
VendorUTU OY
