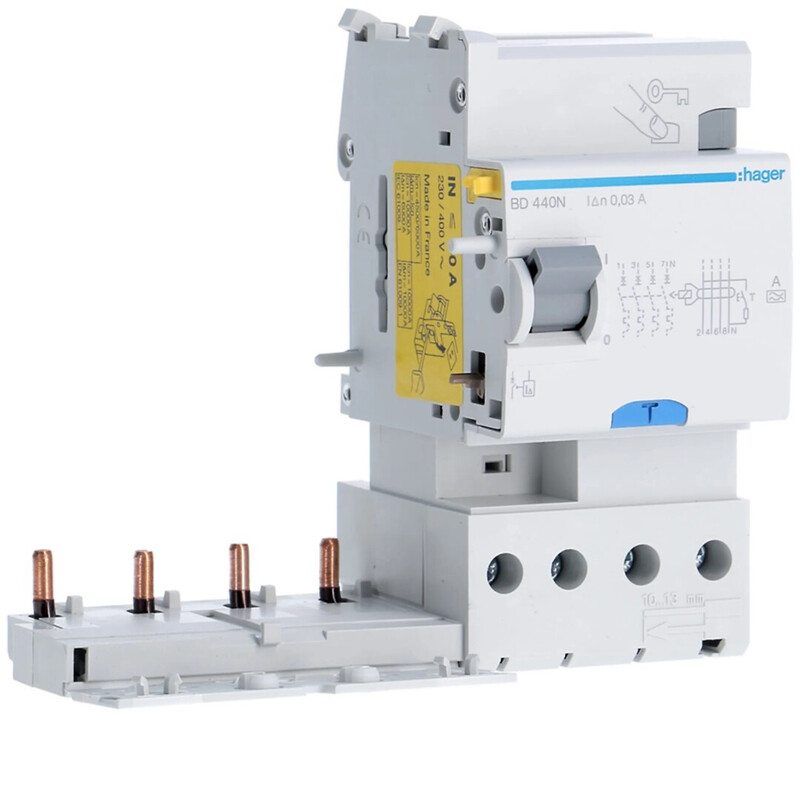

ADD-ON BLOCK BD440N 4X40A 30MA TYPE A
Product code
3260743
Add-on block 4P 40A 30mA A
4-pole residual current device, rated current 40A, trip sensitivity 30mA. Suitable for use with 4-pole circuit breakers with 1-pole per module circuit breakers. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Residual current circuit breaker (RCCB) module (EC002297)
Nominal voltage230-400 V
Nominal current40 A
Rated fault current adjustableno
Rated fault current0.03-0.03 A
Max. delay time0 ms
Delay adjustableno
Number of poles4
Leakage current typeA
Frequency50 Hz
Rated insulation voltage Ui500 V
Rated impulse withstand voltage Uimp4 kV
Power loss35.5 W
Connectable conductor cross section solid-core1-25 mm²
Connectable conductor cross section multi-wired1-16 mm²
Anti-nuisance tripping versionno
Product codes
SAPAEI736
STK3260743
PLC3260743
GTIN/EAN3250611344520
Manufacturer part numberBD440N
Vendor material number3260743
Basic information
Package measurements (L x W x H)110 x 80 x 80 mm
Package volume0.704 l
Package weight0.24 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121614
BrandHAGER
VendorUTU OY
