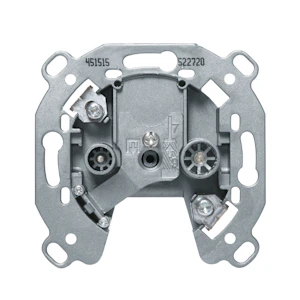

ANTENNA OUTLET 451515 TV+R 13.5DB THR.PASS
Product code
7512145
Technical specifications
Characteristic impedance 75 Ω
Broadband technology 4/2400 MHz
Shielding according to EN 50083-2, class A
Attenuation:
Male
? 5 … 47 MHz 10.5 dB
? 47 … 862 MHz 13 dB
? 950 … 2150 MHz 13.5 dB
? 2150 … 2400 MHz 14 dB
Female
? 5 … 47 MHz 10.5 dB
? 47 … 862 MHz 13 dB
? 950 … 2150 MHz 14 dB
? 2150 … 2400 MHz 14.5 dB
Transmission losses
? 5 … 862 MHz 1.2 dB
? 950 … 2150 MHz 2 dB
? 2150 … 2400 MHz 2.2 dB
? For satellite distribution systems
? For community, DVB-T and broadband cable systems
? For terrestrial reception
? For analog and digital transmission
? For timber construction and trunk lines
? HDTV compatible
? With push-on connectors
? External adapters removable for round furniture
? Standards EN 50083-2 and EN 60728-4 This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Antenna socket box (EC000439)
ModelLoop-through socket
Mounting methodFlush-mounted
Tap loss at 860 MHz13 dB
Tap loss at 2150 MHz13.5 dB
Number of outlets2
Suitable for cable modemyes
Through loss at 860 MHz1.2 dB
Through loss at 2150 MHz2.2 dB
Suitable for remote power supplyyes
Type of fasteningMounting with screw
MaterialMetal
Material qualityOther
Halogen freeyes
Anti-bacterial treatmentno
Degree of protection (IP)IP20
Product codes
SAPCCH726
STK7512145
PLC7512145
GTIN/EAN4011334424642
Manufacturer part number451515
Vendor material number7512145
Basic information
Package measurements (L x W x H)90 x 60 x 90 mm
Package volume0.486 l
Package weight0.115 kg
Base uniteach
Package units1 / 10 / 100 / 3200
Package contents–
UNSPSC43221702
BrandHAGER
VendorUTU OY
Documents (6)
Certificates
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.013
GWP, uniteach
Source for GWP dataEPD
