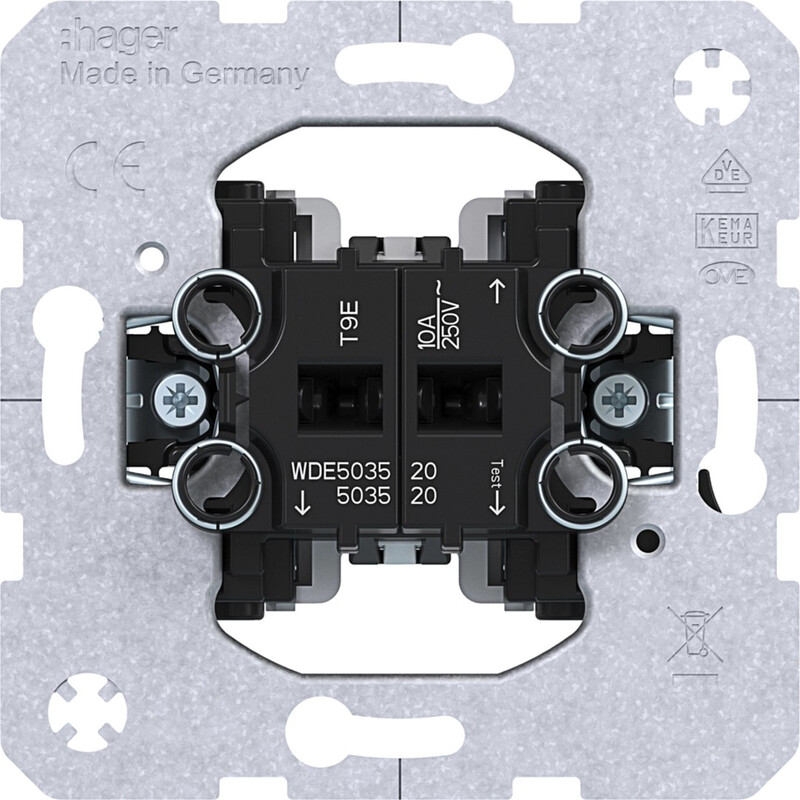

BLIND SERIES PUSH BUTTON S.1 5/10A/250V/2X BLIND UJ
Product code
2107696
Curtain rod button 1-pole Rated voltage 250 VAC Switching current 10 A Follow the motor manufacturer's instructions. - with mechanical and electrical interlock to prevent simultaneous switching on - with spring terminals This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Window blind switch (EC000044)
For venetian blindsyes
For roller blindsyes
For awningsyes
Assembly arrangementBasic element
Model1-pole push button
Number of poles1
Method of operationRocker
With electrical latchno
Mechanical controllableyes
Electronic controllableno
Mounting methodFlush-mounted
MaterialOther
Material qualityOther
Halogen freeyes
Surface protectionUntreated
Product codes
SAPDQC503
STK2107696
PLC2107696
GTIN/EAN3250610095423
Manufacturer part numberWDE503520
Vendor material number2107696
Basic information
Package measurements (L x W x H)71 x 71 x 42 mm
Package volume0.212 l
Package weight0.07 kg
Base uniteach
Package units1 / 10 / 50 / 1600
Package contents–
UNSPSC39122211
BrandHAGER
VendorUTU OY
Documents (4)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.0034
GWP, uniteach
Source for GWP dataEPD
