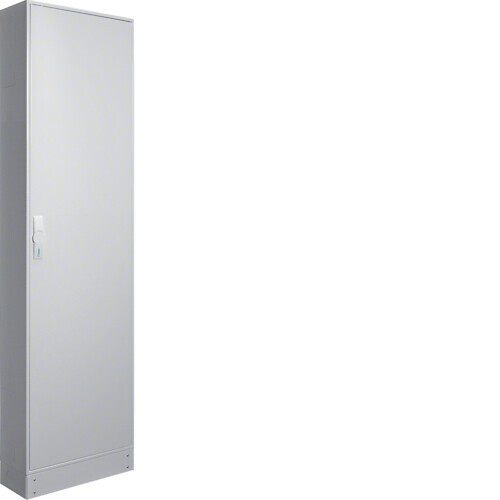

CABINET WALL INSTALLATION FE FP22SN2 IP44 1950X550X205

Metallic enclosures with internally insulated contact surfaces are a solid foundation for IP44 protection class installations in building electrical distribution boards. The empty enclosure housing can be freely equipped with Univers N series mounting fields. Mounting fields are installed on vertical support rails selected according to the enclosure size. - Door flush with front face - For devices up to 400 A - Surface, flush, and partially recessed mounting - Color: RAL9010 - Entry glands pre-installed at top and bottom - Locking: Door latch with lever handle and plug for locking rods - Recess frame for flush mounting, cover 54 mm IP44 - When using the recess frame, protection class is only IP30 - Standards: VDE 0660 part 500, part 504, part 504/A1 This product description is an automated translation of the original Finnish description.
