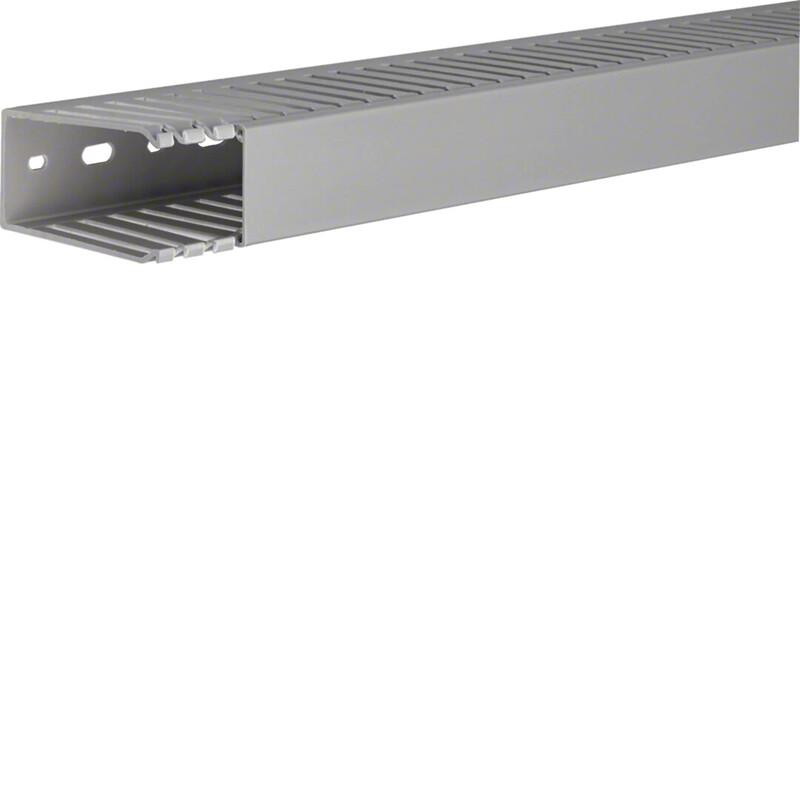

CABLE RACE-WAY DNG75037 PVC 73X37X2000 GRAY
Product code
1417707
Control panel trunking 75037,grey
DNG conduit systems for equipment and device installations
- Conduit sizing according to DIN 43659
- Cover easy to install and remove
- Clamp spacing of 10 mm and 12.5 mm
- Side openings for conductors up to 6 mm²
- 21 alternative channel sizes
- Base holes according to EN 50085
- UL listed, File No. 48414
- CSA listed, File No. 22009
- Self-extinguishing according to UL94 V0
- Temperature resistance -5 °C to +60 °C This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Slotted cable trunking system (EC000012)
MaterialPolyvinyl chloride (PVC)
Height75 mm
Width37 mm
Length2000 mm
Diameter0 mm
Distance of slots7.5 mm
Slit width5 mm
Type of side wallSlotted
Halogen freeno
Self-extinguishingyes
Flexibleno
Usable cross section2221 mm²
Type of fasteningBottom perforation
With coveryes
ColourGrey
Product codes
SAPATC300
STK1417707
PLC1417707
GTIN/EAN4012740108379
Manufacturer part numberDNG7503707030B
Vendor material number1417707
Basic information
Package measurements (L x W x H)1000 x 40 x 75 mm
Package volume3 l
Package weight0.48 kg
Base unitMeter
Package units2 / 40 / 960
Package contents–
UNSPSC39121302
BrandHAGER
VendorUTU OY
