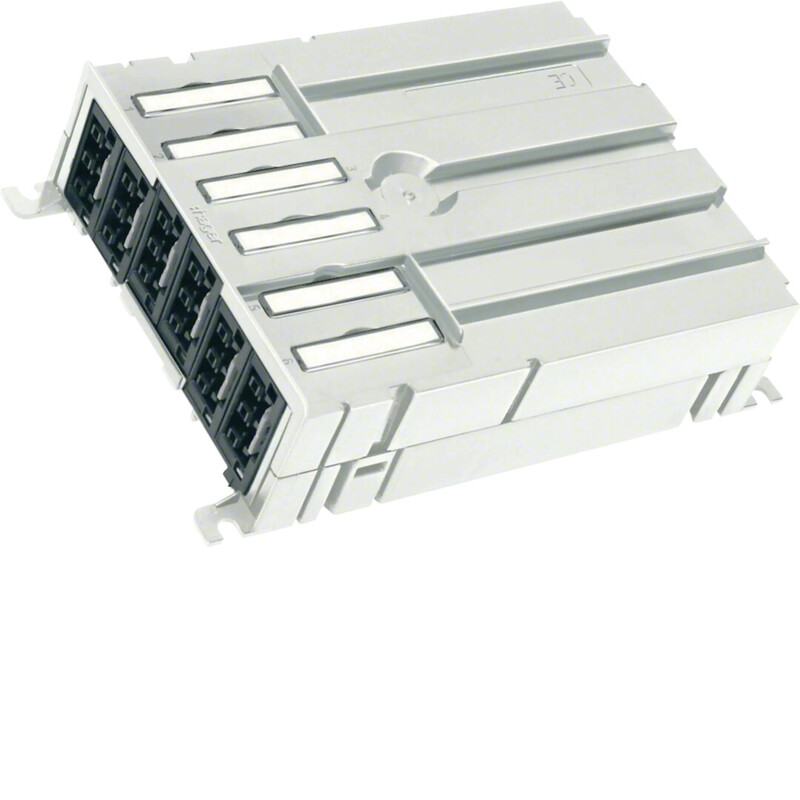

CONSOLIDATION POINT G8360 6X 3P WAGO WINSTA
Product code
1902226
Consolidation Point with six Wago Winsta output connectors. Used for flexible and easily reconfigurable distributed power distribution beneath technical floors, within furniture, or on cable trays as part of fixed electrical and data network installations in buildings. The consolidation point can also be installed inside a conduit with a 120 mm wide cover. In addition to simplified cable modifications, consolidation points reduce the amount of cable required in the building, lowering material costs, installation effort, and fire load. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Raised floor distribution system (EC001916)
Input3-pole
Suitable for loop-through wiringyes
Number of input current circuits6
Cross section connection cable2.5 mm²
Connection typeClamp block
Number of branches per phase2
Colour connector systemBlack
System-oriented connector systemyes
Housing materialPlastic
Product codes
SAPCID170
STK1902226
PLC1902226
GTIN/EAN4012740885201
Manufacturer part numberG8360
Vendor material number1902226
Basic information
Package measurements (L x W x H)162 x 125 x 45 mm
Package volume0.911 l
Package weight0.272 kg
Base uniteach
Package units1 / 10
Package contents–
UNSPSC39121321
BrandHAGER
VendorUTU OY
Documents (5)
Certificates
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.
GWP, uniteach
Source for GWP dataEPD
