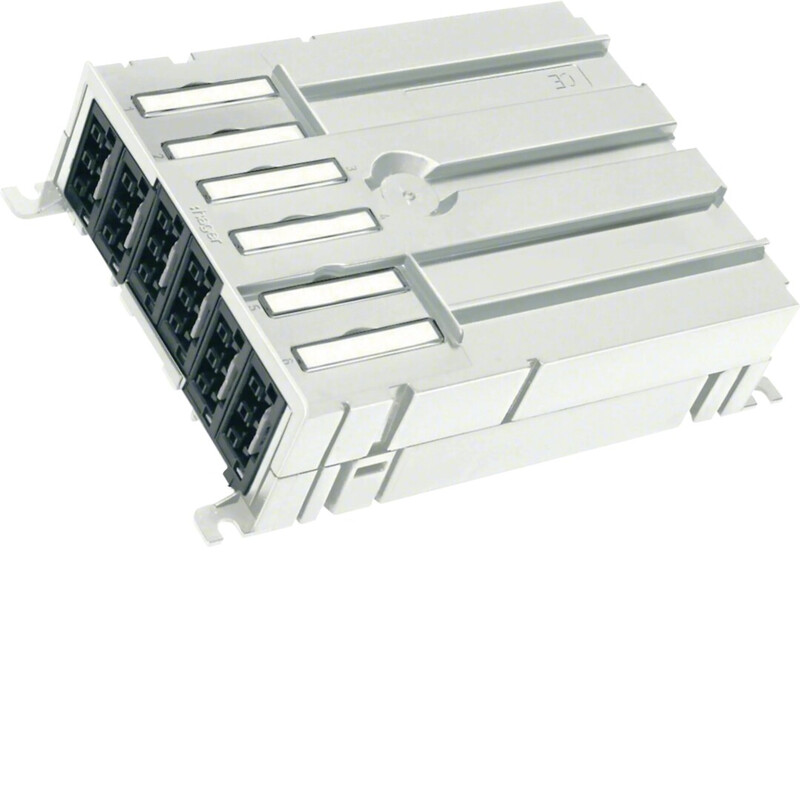

CONSOLIDATION POINT G8366 6X 3P WIELAND
Product code
1902227
Consolidation Point with six Wieland Gesis outlet connectors. Used for flexible and easily reconfigurable distributed power distribution beneath technical floors, within furniture, or on cable trays as part of fixed electrical and data network installations in buildings. The consolidation point can also be installed inside a conduit equipped with a 120 mm wide lid. In addition to simplifying cable modifications, consolidation points reduce the amount of cable required in buildings, thereby lowering material costs, installation effort, and fire load. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Raised floor distribution system (EC001916)
Input3-pole
Suitable for loop-through wiringyes
Number of input current circuits6
Cross section connection cable2.5 mm²
Connection typeClamp block
Number of branches per phase2
Colour connector systemBlack
System-oriented connector systemyes
Housing materialPlastic
Product codes
SAPCID167
STK1902227
PLC1902227
GTIN/EAN4012740885263
Manufacturer part numberG8366
Vendor material number1902227
Basic information
Package measurements (L x W x H)162 x 125 x 45 mm
Package volume0.911 l
Package weight0.274 kg
Base uniteach
Package units1 / 10
Package contents–
UNSPSC39121321
BrandHAGER
VendorUTU OY
